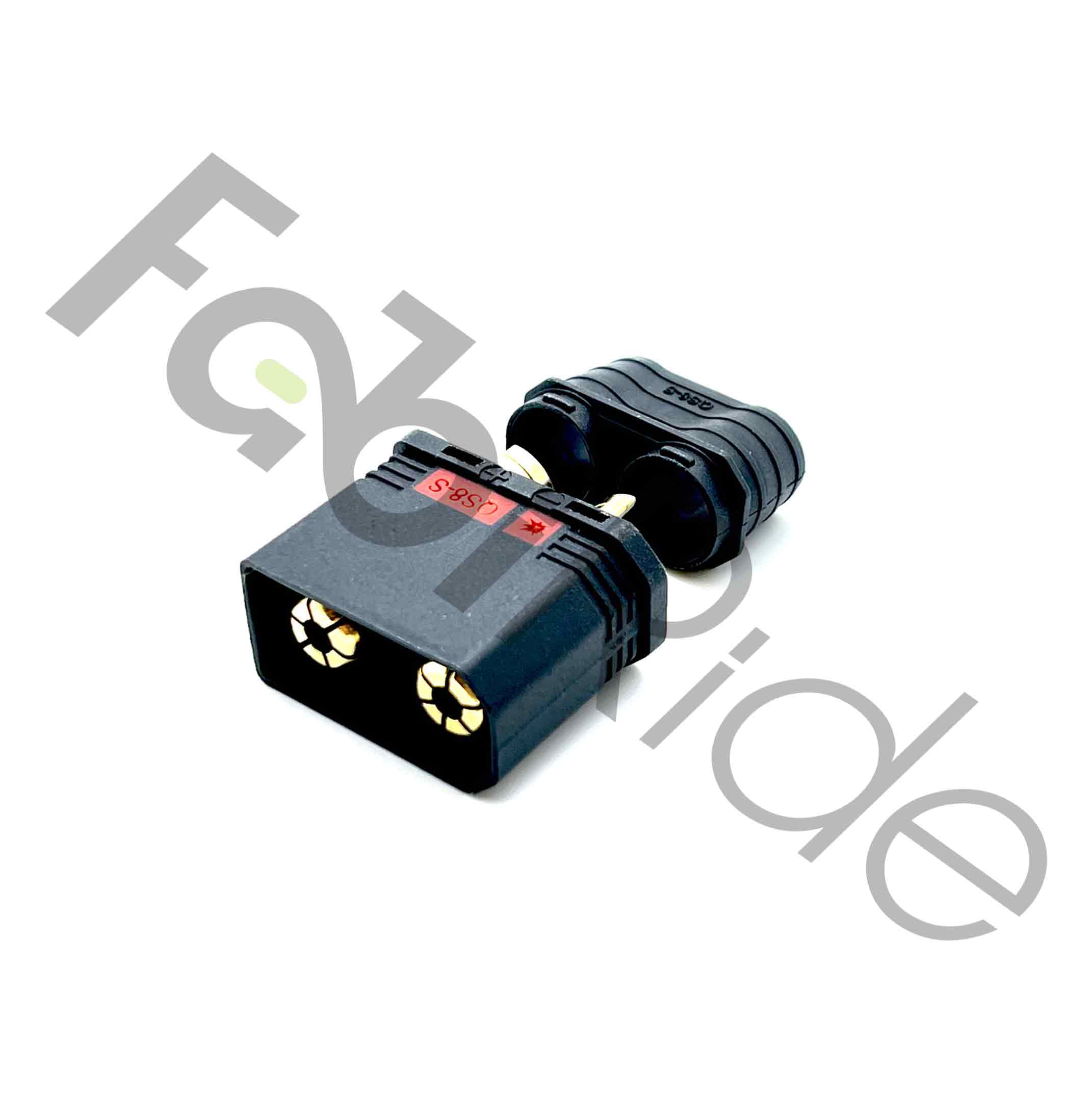

QS8 Male Connector – 8 mm Contacts, 200 A DC Battery Plug

The QS8 male connector is a high-current DC power plug built around 8 mm gold-plated copper alloy contacts. It carries a continuous rating of roughly 200 A DC. The connector is designed for e-mobility builds, including Sur-Ron and Talaria electric dirt bikes, e-bikes, go-karts, RC models and custom DIY power systems.

Its most common job is joining the battery pack to the motor controller. In addition, it suits high-current and fast-charge adapters when the charger voltage and current match the wiring. The housing is moulded from heat-resistant polyamide (PA/nylon), so it copes with vibration and warm-up during hard riding.

This listing covers 1 pc of the male half (the plug) in a 2-pin DC layout. Wires attach through solder cups, which makes it a favourite among battery builders and workshop technicians who solder their own power harnesses.

Key Benefits

• Very high current capacity – rated at approximately 200 A continuous, with short-term peaks running higher depending on the installation.
• 8 mm contacts – a larger contact surface means lower transition resistance and less heat build-up under load.
• Gold-plated copper alloy – the plating improves conductivity and keeps contact stable after repeated mating cycles.
• Keyed geometry – the shape locks orientation, so the halves cannot be joined the wrong way round.
• Heat-resistant PA/nylon housing – a sturdy body that withstands vibration on off-road terrain.
• Solder cups – the conductor drops straight into the cup, so assembly stays fast and tidy.
• Thick wire friendly – 6–8 AWG is the recommended range, chosen by current draw and run length.
• 2-pin DC design – a simple positive and negative arrangement for the main power circuit.

Who Is This Connector For?

This plug is aimed at light electric dirt bikes such as Sur-Ron and Talaria, plus other e-motorcycles running serious amperage. It also appears in electric bicycles, go-karts and RC models where a healthy current reserve matters more than compact size.

The typical wiring point is between the battery pack and the motor controller. Furthermore, the same connector works well in fast-charging and high-current adapter builds. Always confirm that your charger’s voltage and current suit the rest of the installation first.

Battery manufacturers, repair workshops and DIY builders are the main users here. It is especially useful in upgrade projects that demand a high amp headroom together with reliable contact. Because this is a bare connector rather than a finished cable, a soldering iron is required for fitting.

Package Contents

• 1 pc QS8 male connector (plug), 2-pin DC
• The matching QS8 female connector (socket) is sold separately

Technical Specifications

Why Choose the QS8 Male Connector?

The headline difference against XT90 is contact size. QS8 contacts measure 8 mm, whereas XT90 uses roughly 5,5 mm and is generally rated near the 90 A mark. That makes the QS8 diameter about 45 % larger, so losses under load drop noticeably.

Material choice supports that current rating. The polyamide body resists heat and vibration, while the gold plating maintains a steady contact surface over many connections. Meanwhile, the solder cups give a firm mechanical and electrical joint on thick 6–8 AWG cable, and the keyed profile rules out reverse polarity when the halves meet.

One point deserves attention before you build. Real-world current depends on conductor cross-section, cable length, cooling and solder quality. Therefore ≈200 A describes the connector itself, not a guarantee for the whole system.

Frequently Asked Questions

Does this connector fit Sur-Ron and Talaria bikes?

• Yes, it is used on Sur-Ron and Talaria electric dirt bikes.
• It links the battery pack to the motor controller.
• Other e-motorcycles with similar current demands also work.

What current can the QS8 male connector handle?

• The rating is approximately 200 A continuous DC.
• Short-term peaks can exceed that figure.
• Cable size, length, cooling and solder quality set the practical limit.

How does QS8 compare with XT90?

• QS8 contacts are 8 mm; XT90 contacts measure about 5,5 mm.
• XT90 is typically rated near 90 A.
• The larger QS8 diameter reduces losses under heavy load.

Which wire gauge should I use?

• 6–8 AWG is the recommended range.
• Pick the gauge according to current draw and cable length.
• The solder cups accept these thicker conductors directly.

Is this an anti-spark version?

• No, this is the standard version without anti-spark.
• The anti-spark variant is designated QS8-S.

Do I get the female half as well?

• No, the package holds 1 pc of the male plug only.
• The mating QS8 female socket is purchased separately.

Can I use it on e-bikes, go-karts or RC models?

• Yes, all three applications are common for this connector.
• It suits builds needing a large current reserve.
• Fast-charge and high-current adapters are another option.

What tools does installation require?

• A soldering iron, since this is a connector and not a ready-made cable.
• Wires are soldered into the solder cups.
• Clean joints help keep transition resistance low.

For Sur-Ron, Talaria and other high-amperage electric builds, this 2-pin plug delivers the contact area those systems ask for. Pair it with the matching QS8 female socket, solder in 6–8 AWG cable, and the keyed housing takes care of correct polarity every time you reconnect.
