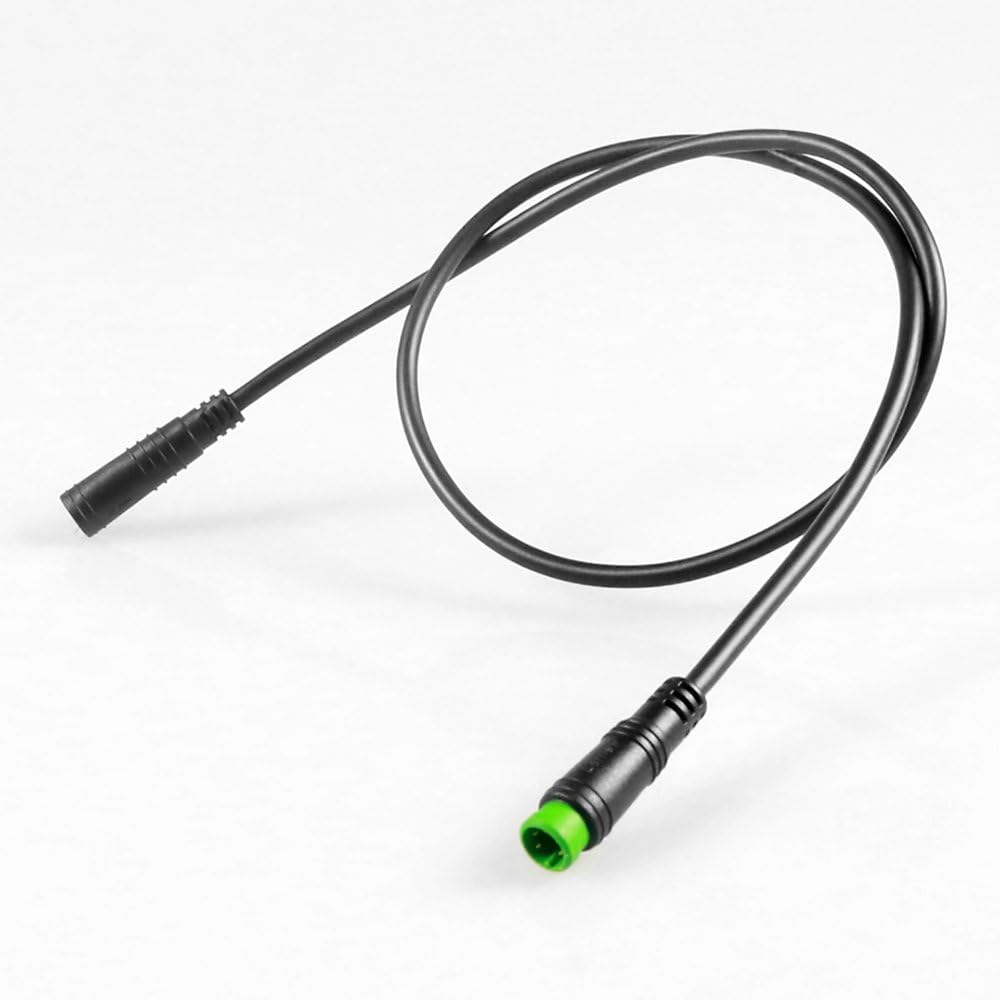

The Higo 5 pin extension cable is a passive signal cable that lengthens the link between your controller and its peripherals. It is designed for electric bikes and electric scooters that use Higo 5 pin connectors. You connect it between the controller and the display, sensors or throttle. The connector follows the Higo 5 pin standard used widely by Bafang system displays, sensors and throttles.
One end carries a male plug, the other a female socket. Because of that, the existing circuit is simply made longer. The cable does not change the connector type and does not alter the pinout. No soldering is required, so installation needs no tools and no wire cutting.
Protection is rated IP65, and the cable handles up to 2 A. The jacket is black and flexible, which makes routing along the frame or handlebar area straightforward.
Key Benefits
- Higo 5 pin standard – direct plug-to-socket connection without adapters.
- IP65 rating – resistance to dust and rain splashes while riding outdoors.
- Up to 2 A – enough for signal circuits and small accessory loads.
- Plug and play – connects without soldering and without reworking the harness.
- Secure locking – the connector pushes in straight and locks with a click.
- Flexible insulation – route the cable through the frame and bar area without strain.
- Black colour – the wiring stays discreet against dark frames and cables.
- Passive design – no electronics inside, so the signal passes straight through.
Who Is This For?
This cable suits electric bikes and electric scooters fitted with Higo 5 pin connectors. It also fits Bafang type systems, where displays, sensors and throttles use the same connector format. One condition applies: the pinout must match your controller and peripherals.
In practice, riders use it for three jobs. First, extending a display or control pad lead when the controller moves to another spot on the frame. Second, lengthening a speed sensor or brake sensor lead. Third, extending the throttle (twist grip) cable. Moreover, it helps anyone tidying a harness – moving a controller into the frame triangle or under the saddle often leaves the factory lead too short.
Technical Specifications
| Connector | Higo 5 pin (plug ↔ socket, as supplied) |
| Pin count | 5 contacts |
| Maximum current | 2 A |
| Protection rating | IP65 (dust and water splashes) |
| Purpose | Signal and accessory power per controller specification |
| Colour | Black |
| Connection | Plug and play, no soldering |
| Locking | Push in until it clicks, no twisting |
| Compatibility | Higo 5 pin ecosystem by pinout |
| Application | Electric bikes and electric scooters |
Installation
- Switch off the power and disconnect the battery.
- Join the Higo 5 pin plug and socket straight – do not twist the connector.
- Push the connector in until it clicks.
- Check that the cable does not tension when the bars turn or the fork works.
- Power up the system and test the peripheral.
Why Choose This Extension?
The main difference is that this is a passive extension, not an adapter. There are no electronics inside and the pinout stays unchanged. Therefore the circuit remains exactly as it left the factory, and you avoid re-soldering wires or stripping the original harness.
Furthermore, the IP65 rating targets outdoor conditions specifically. The connector resists dust and rain splashes, so it can sit in an exposed spot on the frame. However, avoid aiming a pressure washer directly at the joint. Finally, the 2 A limit defines the scope clearly: this is a signal circuit for the display, sensors and throttle.
FAQ
Will it work with Bafang displays and sensors?
- Yes, provided the pinout matches your controller and peripherals.
- Bafang systems widely use the Higo 5 pin connector format.
Does it change the pinout or connector type?
- No. It is a passive extension with a plug on one end and a socket on the other.
Can I use it on an electric scooter?
- Yes, on scooters using Higo 5 pin connectors for the display, sensors or throttle.
How much current can it carry?
- Up to 2 A, which covers signal circuits and small accessory loads.
- It is not intended for motor phase or battery wiring.
Is soldering needed?
- No. The plug and socket push together until they click.
Can I leave the connector exposed on the frame?
- Yes, the IP65 rating covers dust and rain splashes.
- Avoid directing high-pressure washing at the joint.
Which leads can I extend with it?
- Display or control pad, speed sensor, brake sensor and throttle leads.
In short, this black Higo 5 pin cable extends display, sensor and throttle connections on e-bikes and e-scooters without tools. Check your pinout, push the connector home until it clicks, and route the flexible jacket neatly along the frame.
