The INOKIM OXO controller upgrade: two ASI controllers, one per motor, up to 13 kW.
The OXO has two strong motors and two cautious stock controllers. This kit replaces both with ASI BAC855s that plug into the OXO loom under the deck, so both wheels pull evenly and as hard as your battery allows.
The dual ASI BAC855 INOKIM OXO controller upgrade is a plug and play kit that replaces both stock controllers of the INOKIM OXO. Each controller drives one motor with 106 A, both are configured for your battery before they ship, nothing is soldered, and our engineer fine tunes them with you in a remote session that comes with every kit.
13kW
on a 72V battery that delivers 160 A
2x
controllers, one per motor
137km/h
measured with 72V and modified motors
3kW
on the original OXO battery
What the INOKIM OXO controller upgrade changes
Each BAC855 drives its own motor with field oriented control. Consequently, both wheels pull evenly, the throttle feels linear and the motors stay quiet, while the battery decides how far the transformation goes.
Power
Up to 13 kW across two motors
On the original battery the pair runs 3 kW in total. With a battery that delivers 160 A, each controller is set to 6,250 W on 60V or 6,500 W on 72V.
Control
Both wheels pull evenly
Each controller reads its own motor, and both are tuned together in the remote session. The front and rear wheels therefore share the work instead of fighting each other.
Battery
Original or custom 60V and 72V
Choose the original OXO battery or a custom 60V or 72V pack, and both controllers ship set for it.
Speed
Measured at about 137 km/h
That figure comes from a 72V battery, a 65 kg rider and our modified OX and OXO motors. With stock motors the gain is smaller, yet clear from the first metre.

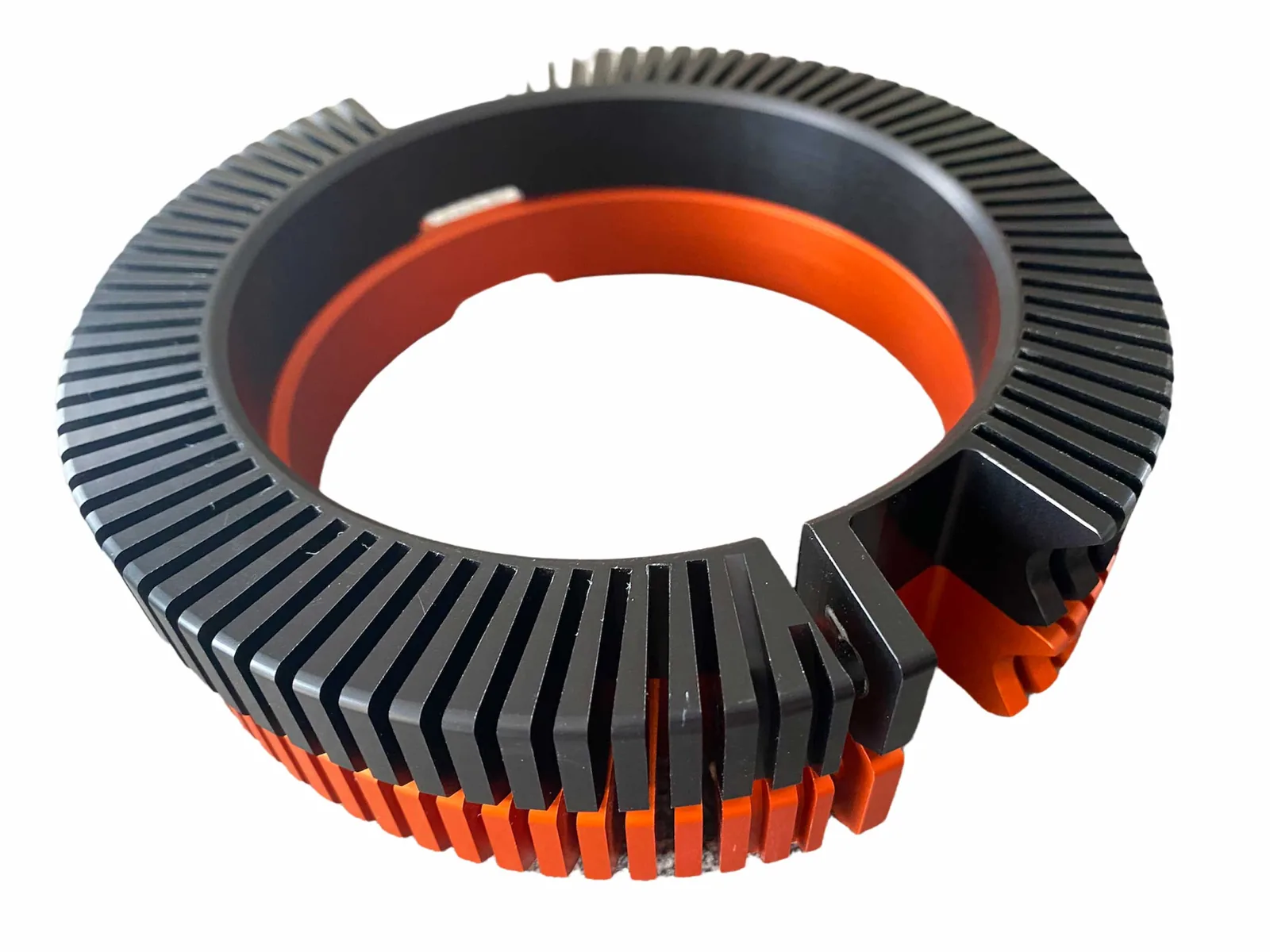

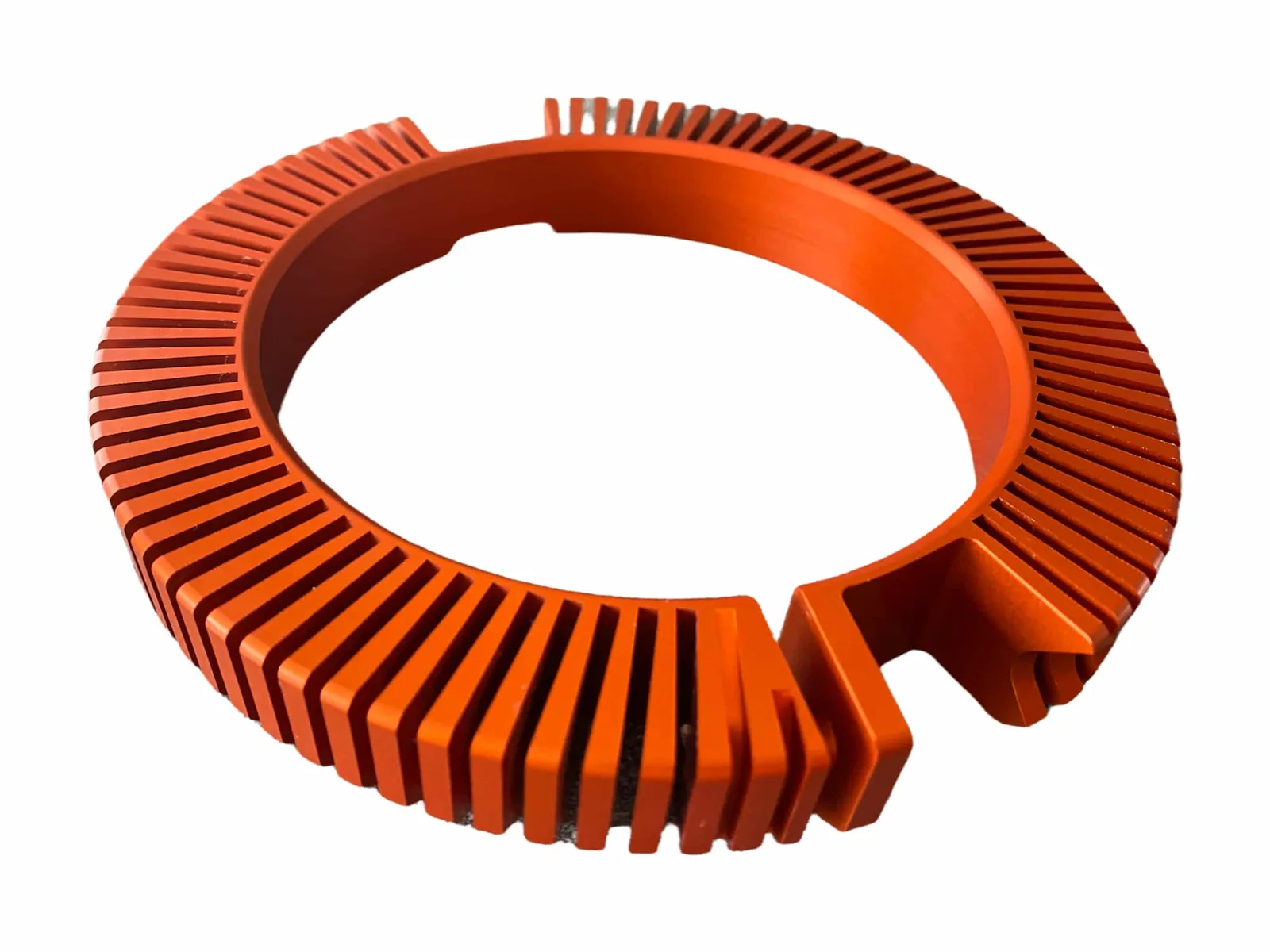

Cooling
Motor radiators, optional

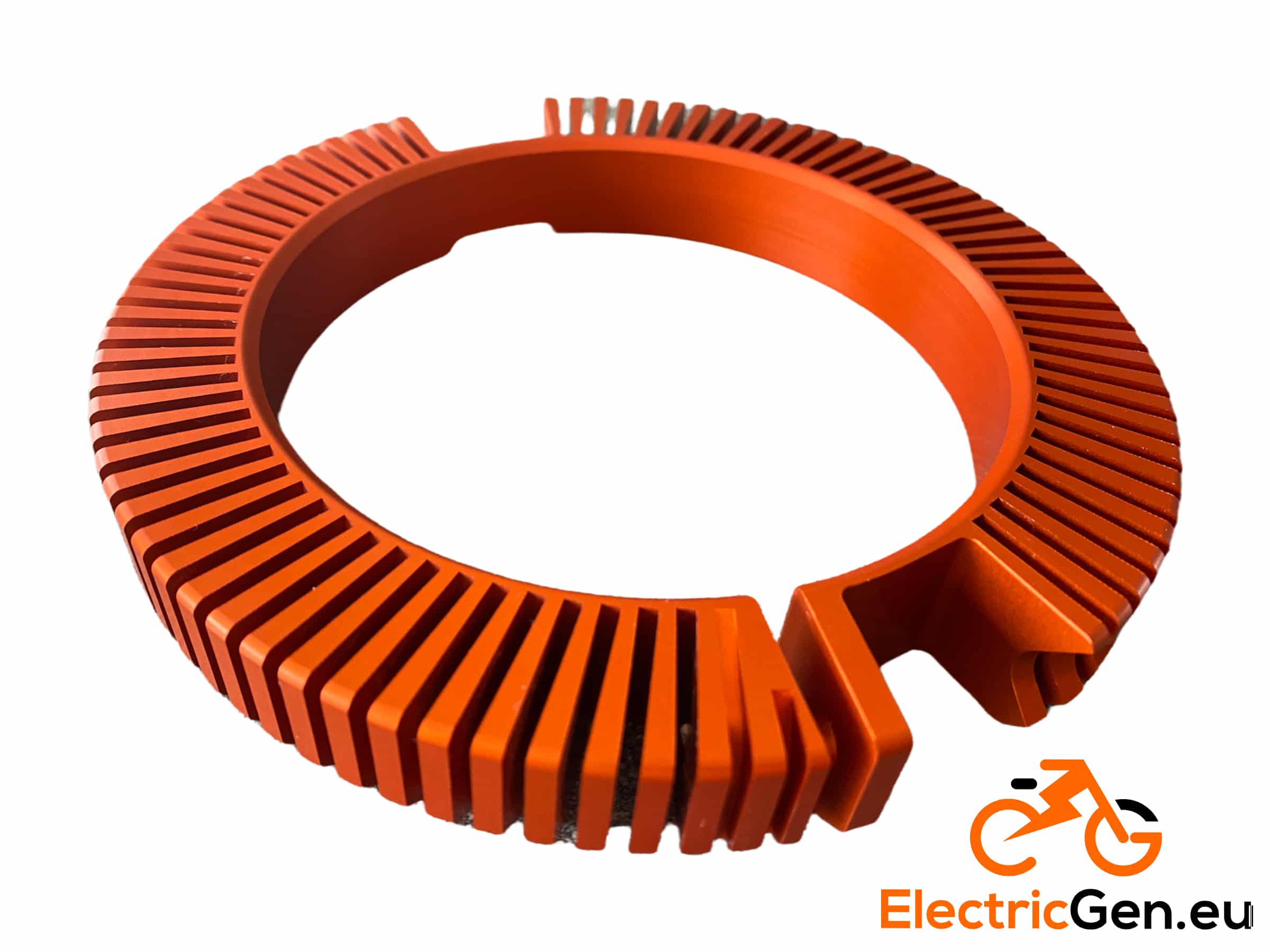

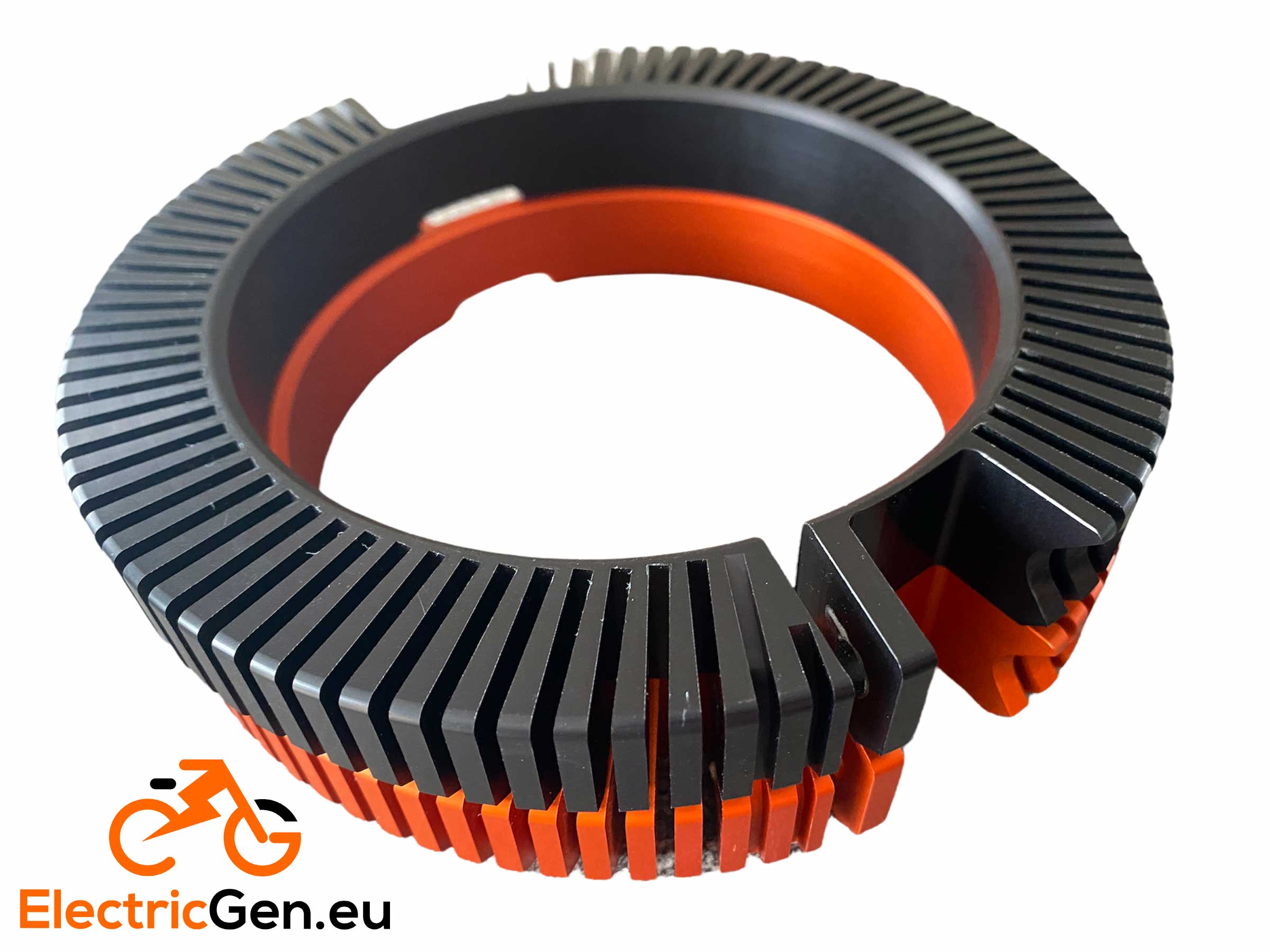

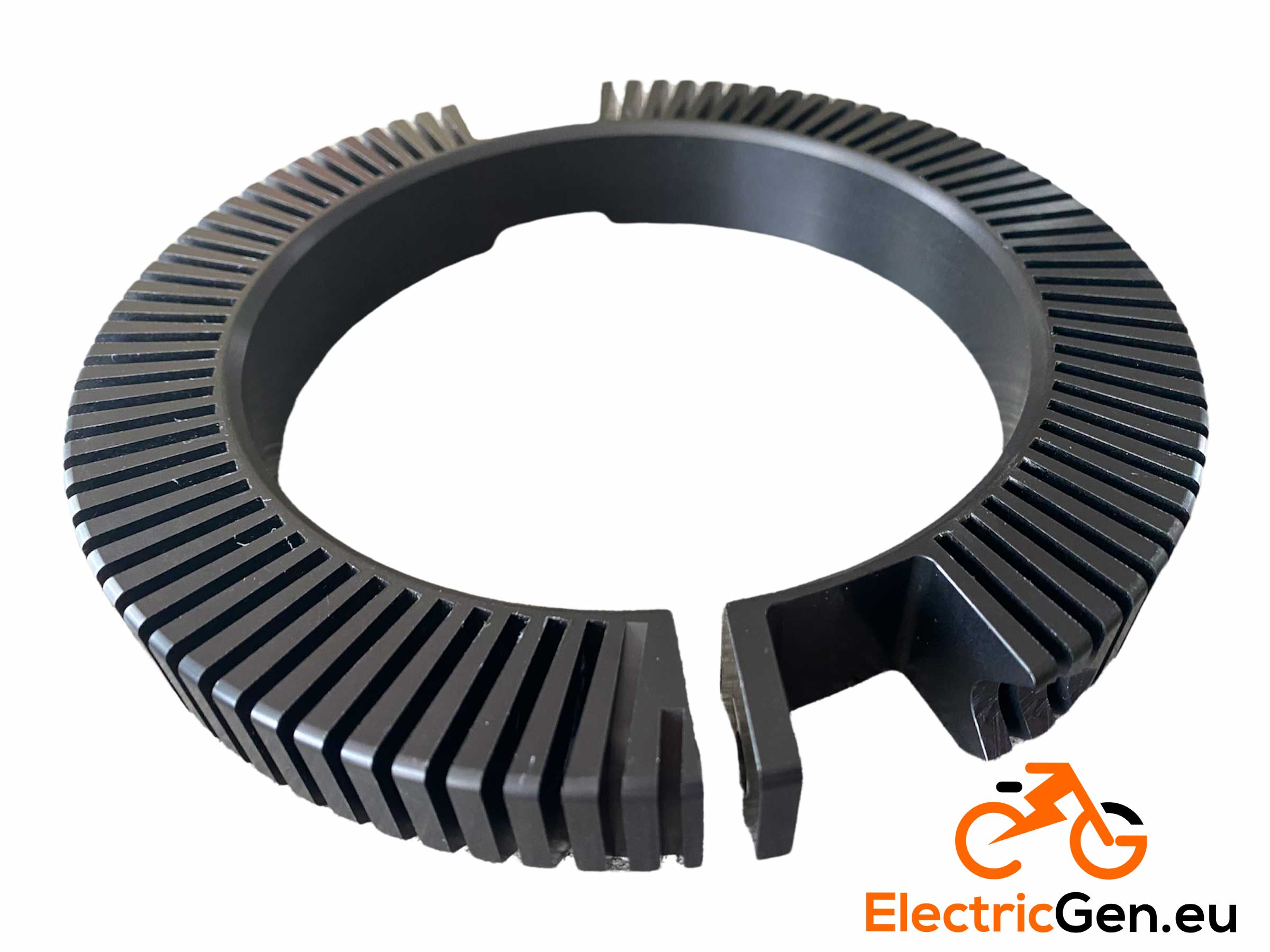

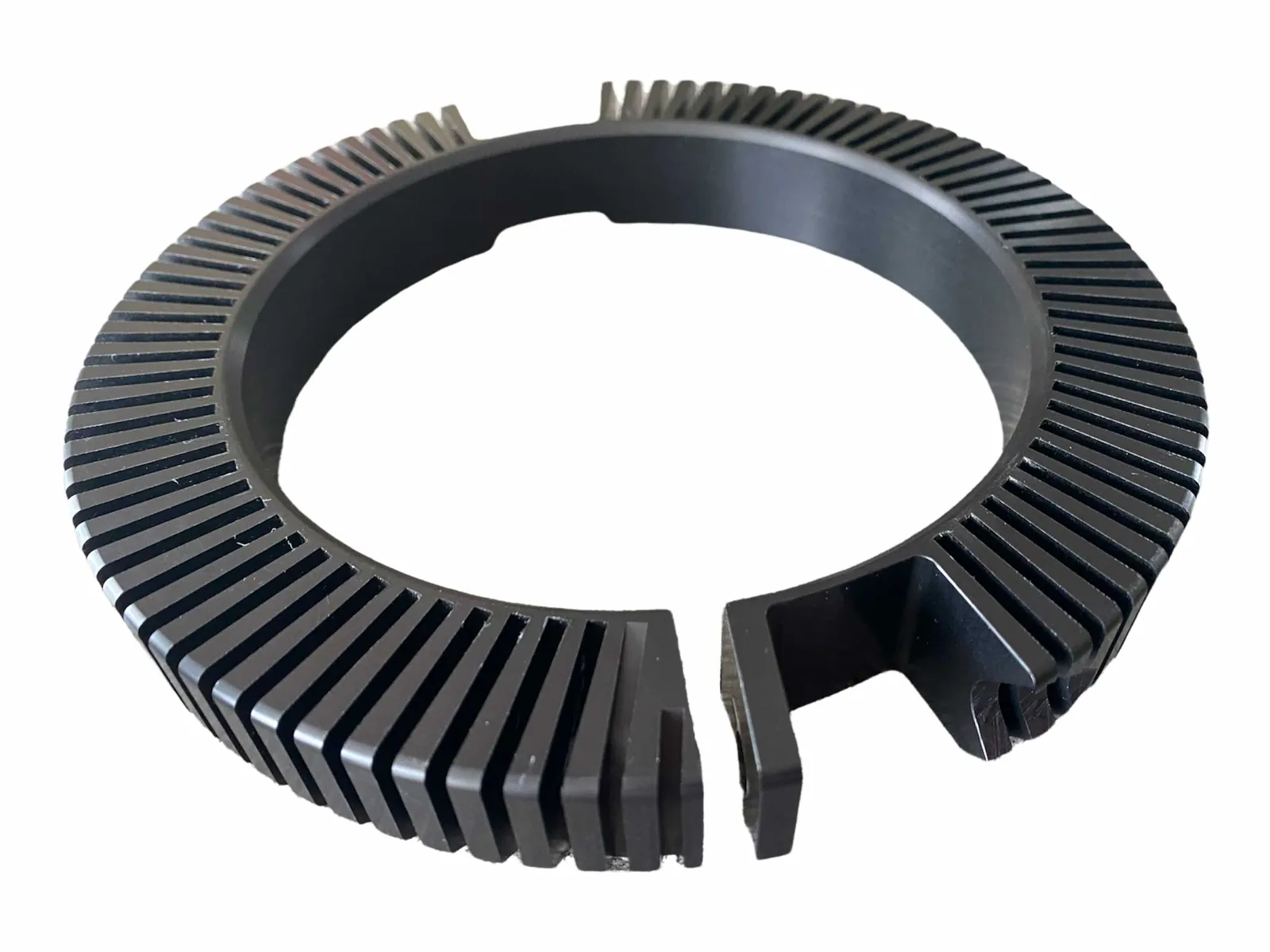

Aluminium radiators in black or orange add cooling area to both motors. We recommend them for the custom battery settings.
Settings
Yours to change
Power, assist levels in percent, wheel size for accurate speed, km/h or mph. With FabiRide Dash Pro you change them from the bars.
INOKIM OXO power by battery: 3 kW to 13 kW
Two controllers can only pull what the battery gives them. On the original pack the kit makes a sharper and stronger OXO. On a 160 A battery it becomes a different vehicle.
| Your battery | Per controller | Total power |
|---|---|---|
| Original OXO battery, 60V 25.6Ah | 1,500 W | 3 kW |
| Custom 60V battery, 160 A or more | 6,250 W | 12.5 kW |
| Custom 72V battery, 160 A or more | 6,500 W | 13 kW |
The original OXO battery cannot deliver the current for more, so both controllers are held back to match it. To use everything the kit has, the battery must deliver at least 160 A. If you are not sure what yours can give, ask us before you order.
Riding with FabiRide Dash Pro? Then the battery setting stays yours to change, so moving to a 72V battery later is a setting on the bars, not a trip back to us.
Choose your display: FabiRide Dash Pro or Eggrider V2
The kit replaces the original OXO throttle with the display you choose, so pick the one that suits how you ride. Both arrive tuned and ready, but only Dash Pro talks back to the ASI.
New option
FabiRide Dash Pro
A colour touchscreen that reads the ASI BAC855 and writes settings back to it, from the handlebar or from the free FabiRide app. On the OXO it also brings reverse, your phone, maps and crash detection to the bars.
Compact

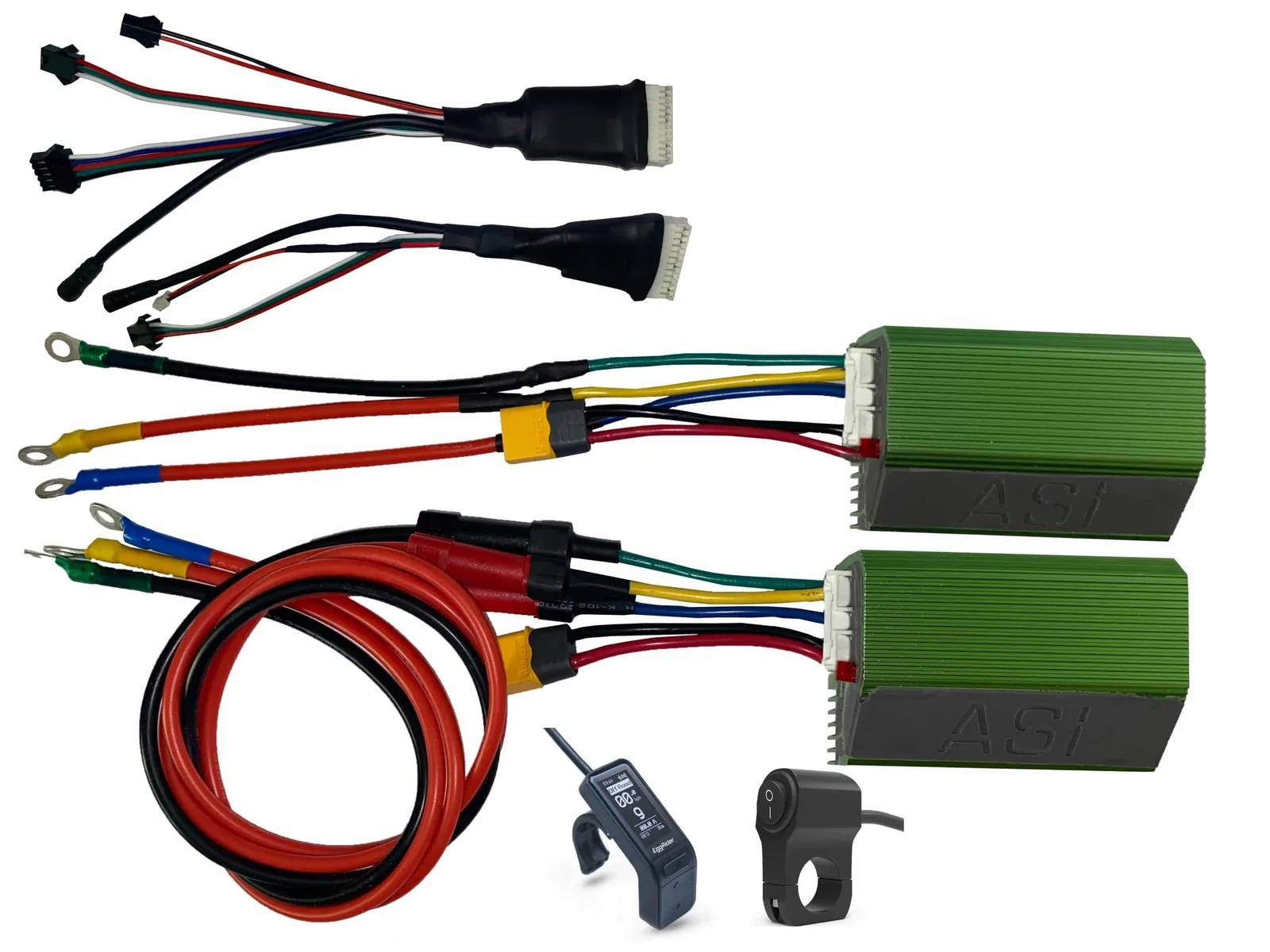

Eggrider V2
A compact display with a button that switches the controllers on and off, and a phone app for the basic readings. A good choice if you want the power and a simple screen.
What FabiRide Dash Pro adds to the INOKIM OXO controller upgrade
Tune
Power, speed and assist from the bars
- Change the assist levels in percent, and also the power and speed behind them
- Build riding maps with their own speed and power, then switch between them in one tap
- Every change goes straight to the ASI, so no laptop is needed
Battery
Change packs without reprogramming
- Set the battery yourself when you move to a 72V pack
- The low voltage cut off then follows the pack you set
- So there is no need to send the controllers back
Reverse
Reverse from the bars
- Select reverse on the handlebar remote when you need it
- Then roll the OXO backwards out of a lift, a hallway or a parking rack
- A live indicator shows when reverse is engaged
Limiter
25, 45 or any speed you choose
- Hold the scooter to a speed and power ceiling, for example for the road or a new rider
- Lift the limit in the app when you are off the road
- Then hold three handlebar buttons for two seconds to put it back
Phone
Calls, messages and music
- Answer or decline calls from the handlebar remote while you ride
- Read incoming messages on the display as soon as they arrive
- Skip tracks and change the volume, so your phone stays in your pocket
Safety
Crash detection, maps and ride history
- If you crash, the display sends an SOS with your location to your emergency contacts
- The map is also on the display, one swipe from the dashboard
- Every ride is also recorded with its route, speed and power
The free FabiRide app
The FabiRide app is free on iPhone and Android, and the same account works in any browser at my.fabiride.com. You set the scooter up there once, then come back to tune it, share it with other riders and replay your rides.
Dash Pro fits many more bikes than this kit. See every bike and controller it supports.

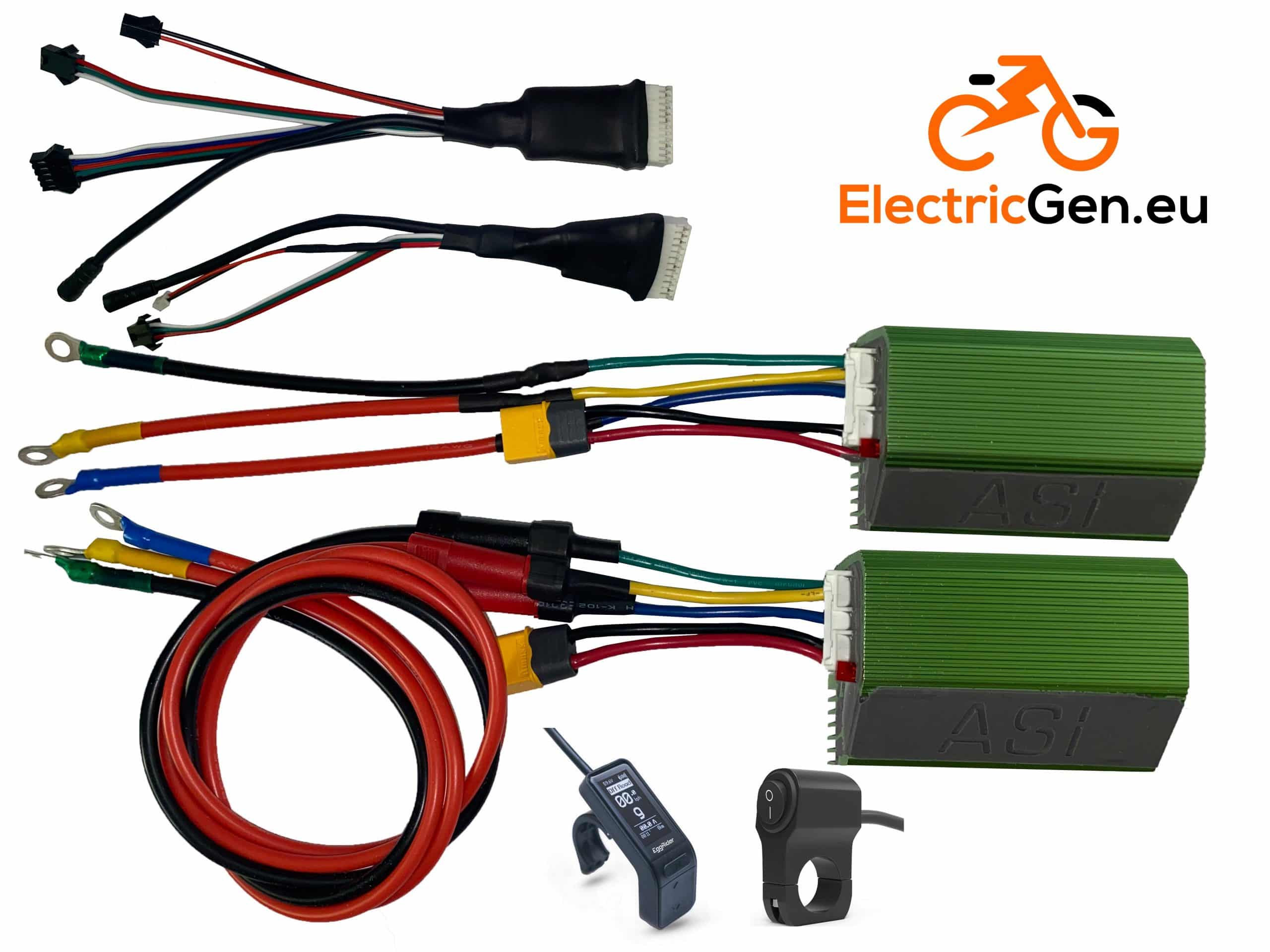

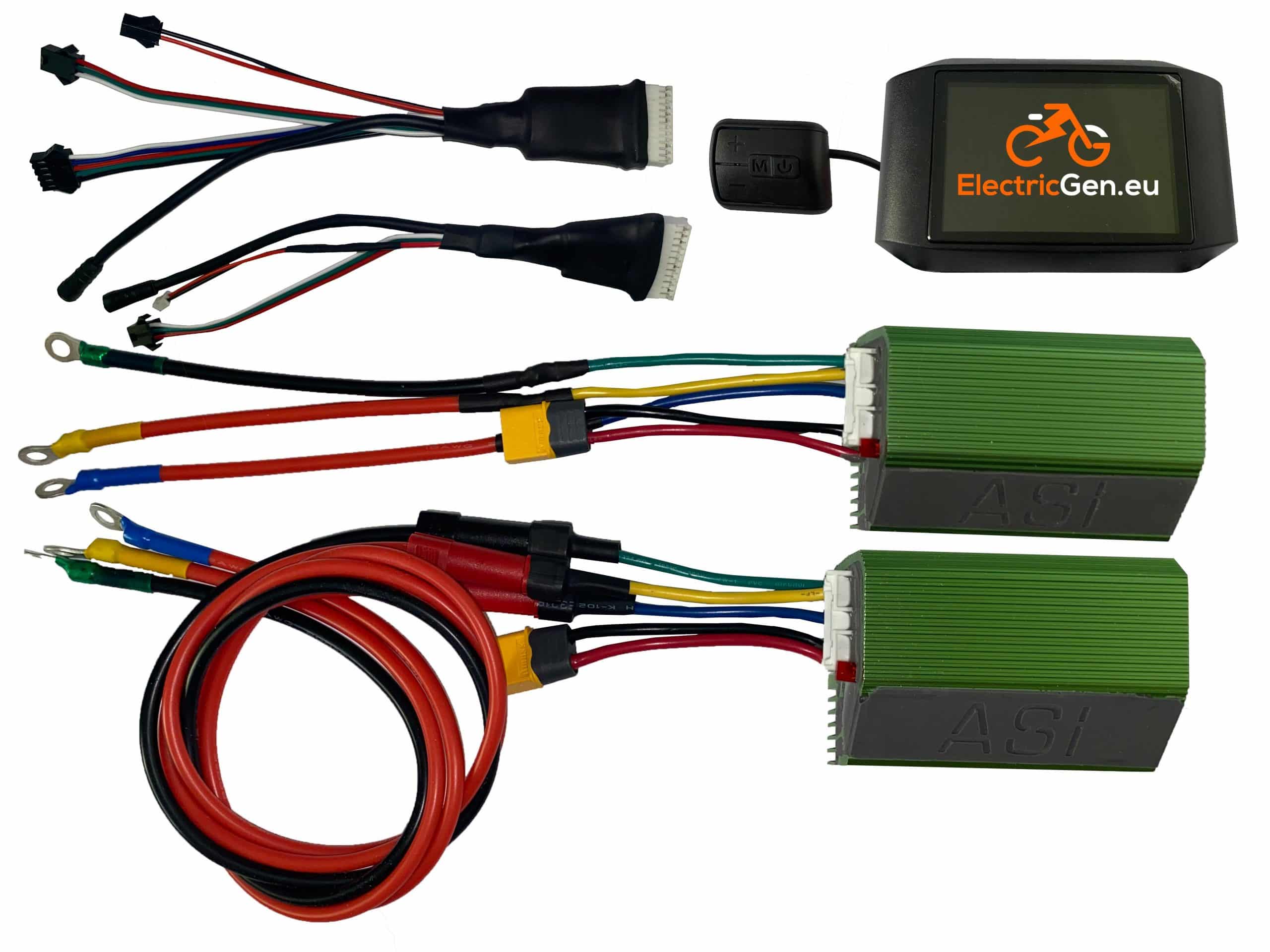

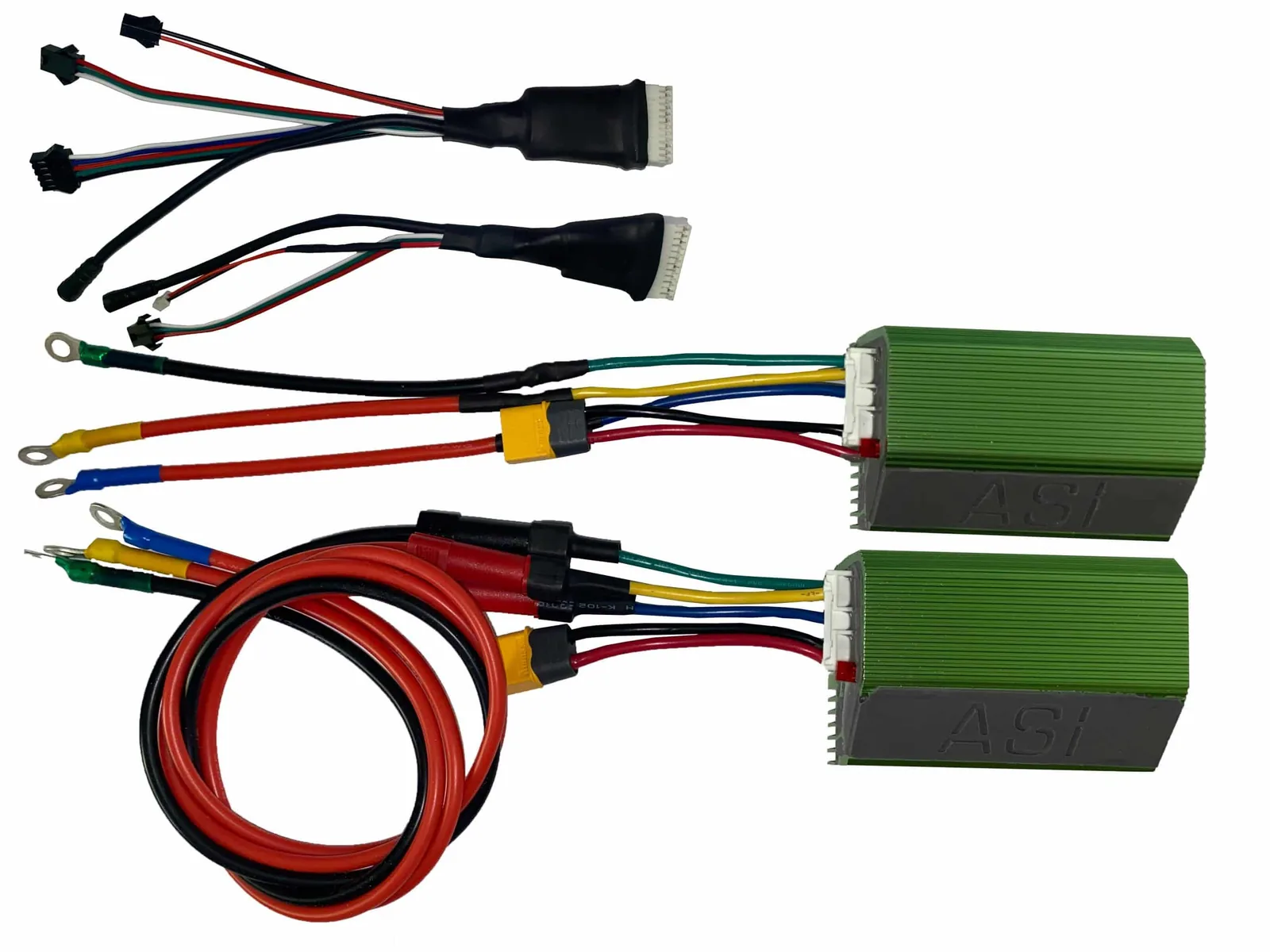

What is in the box
Pick your options above and the kit arrives complete. Nothing else is needed to ride.
-

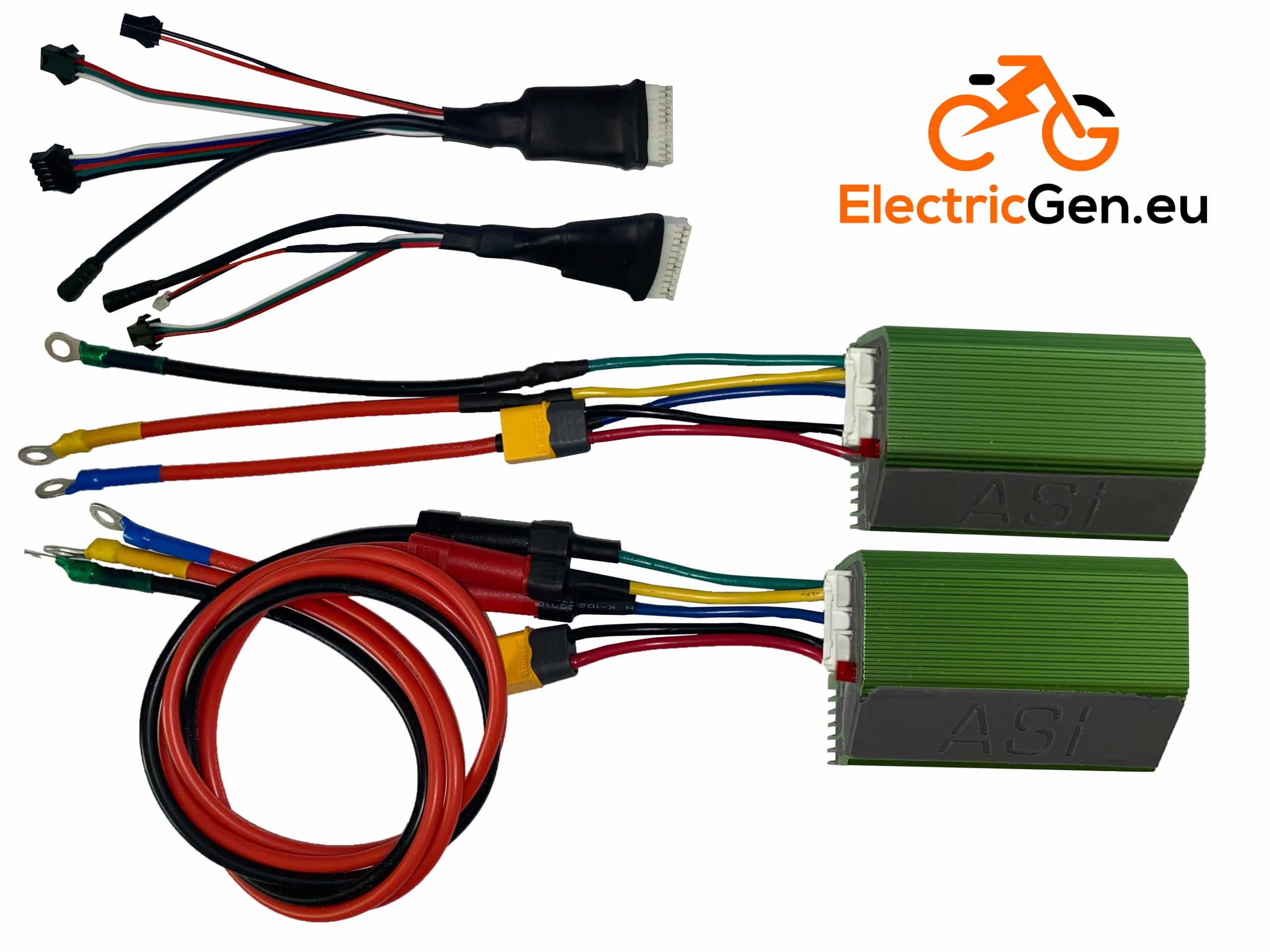

2 x ASI BAC855 controllers
One per motor, configured for your battery before they ship.
-
Plug and play OXO loom
Matches the connectors for both motors, so nothing is soldered.
-
Throttle and display
FabiRide Dash Pro or Eggrider V2, your choice.
-
Motor radiators, optional
Black or orange, for the higher power settings.
-
Remote tuning session
Our engineer checks your installation and tunes both controllers to your battery and your riding.
How to fit the INOKIM OXO controller upgrade
-
Open the deck
Disconnect the battery, open the bottom of the scooter and unplug both stock controllers. No wire is cut.
-
Plug in the loom
Connect the new loom to both motors, the battery, the brake and the new throttle or display. Every lead matches an OXO connector.
-
Close it up
Place the two BAC855s where the old controllers sat, close the deck and fit the display on the bars.
-
Tune it with us
Book the remote session that comes with the kit. Our engineer connects to the controllers, checks your installation and tunes them to your battery, your riding and your terrain.
Keep it dry. Protect the controllers and their white signal connectors from dirt and water during and after fitting. Water inside those connectors is the one failure the kit cannot protect itself against.
Dual ASI BAC855 INOKIM OXO kit specifications
| Controllers | 2 x ASI BAC855, one per motor (manufacturer page) |
|---|---|
| Fits | INOKIM OXO |
| Motor control | Field oriented control (FOC), sensorless, self tuning |
| Phase current | 106 A per controller |
| Power settings | 3 kW on the original battery; 12.5 kW on 60V or 13 kW on 72V with a 160 A battery |
| Battery | Original OXO 60V 25.6Ah, or a custom 60V or 72V pack that delivers 160 A or more |
| Top speed, measured | about 137 km/h with 72V, modified motors and a 65 kg rider |
| Protection | Motor overheat protection, power reduction on low battery |
| Cooling | Optional aluminium motor radiators, black or orange |
| Controller size and weight | 81 x 55 x 39 mm and 300 g each |
| Displays | FabiRide Dash Pro or Eggrider V2 |
| Speed units | km/h or mph, wheel size adjustable |
| Installation | Plug and play, no soldering |
| Tuning | Remote session with our engineer, included |
INOKIM OXO controller upgrade: questions and answers
Does the kit work with the original INOKIM OXO battery?
Yes. On the original pack the INOKIM OXO controller upgrade runs 3 kW in total, which already gives a sharper and stronger OXO. The original pack cannot deliver the current for more. For 12.5 kW or 13 kW you need a 60V or 72V battery that delivers at least 160 A.
Why does the OXO need two controllers?
The OXO has two motors, and each one gets its own BAC855. Both are tuned together in the remote session, so the wheels pull evenly.
How fast can an INOKIM OXO go with this kit?
We measured about 137 km/h with a 72V battery, our modified OX and OXO motors and a 65 kg rider. With stock motors the top speed is lower and the motors run hotter, which is why the radiators are worth having.
Which battery do I need for 13 kW?
A custom 72V battery that can deliver at least 160 A. A 60V battery with the same current gives 12.5 kW.
Do I need to replace the throttle?
Yes. The kit replaces the original OXO throttle with the display you choose, FabiRide Dash Pro or Eggrider V2.
Does the INOKIM OXO controller upgrade need any soldering?
No. The loom matches the OXO connectors for both motors, both controllers arrive configured, and the display plugs into the loom.
Why choose Dash Pro instead of Eggrider V2?
Dash Pro writes settings back to the ASI: power, assist levels, riding maps, the battery setting and a speed limit, from the bars or the app. On the OXO it also adds reverse, calls and music, maps and crash detection. Eggrider V2 is the compact choice if you only want the readings.
