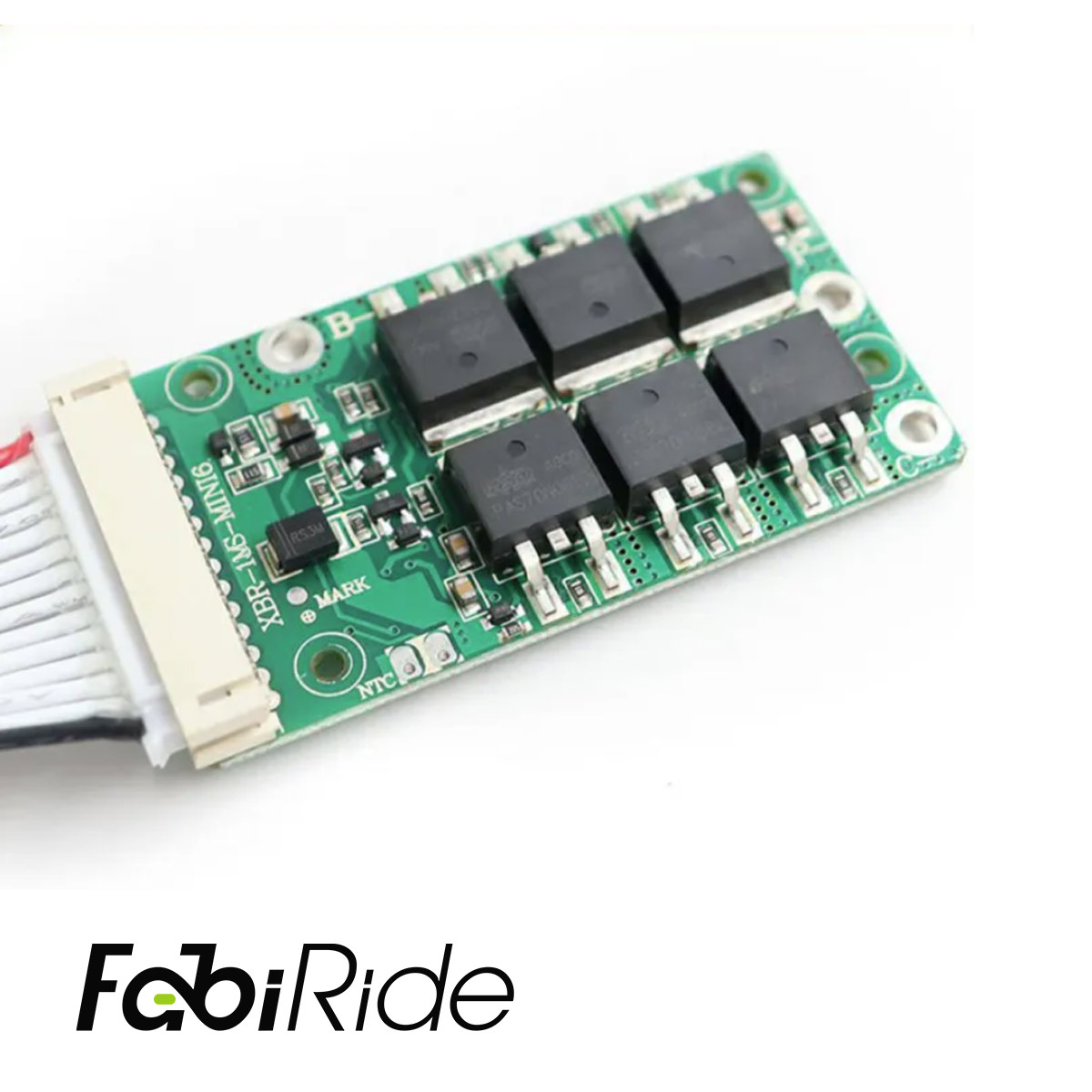

The BMS 14S 52V 20A is a battery management system protection board built for 14S lithium-ion packs. It fits electric bikes, electric scooters and other 52 V light electric vehicles. The board works with 14 cell groups wired in series. Nominal pack voltage is 52 V, while a fully charged pack reaches 58.8 V. Continuous current is rated up to 20 A.

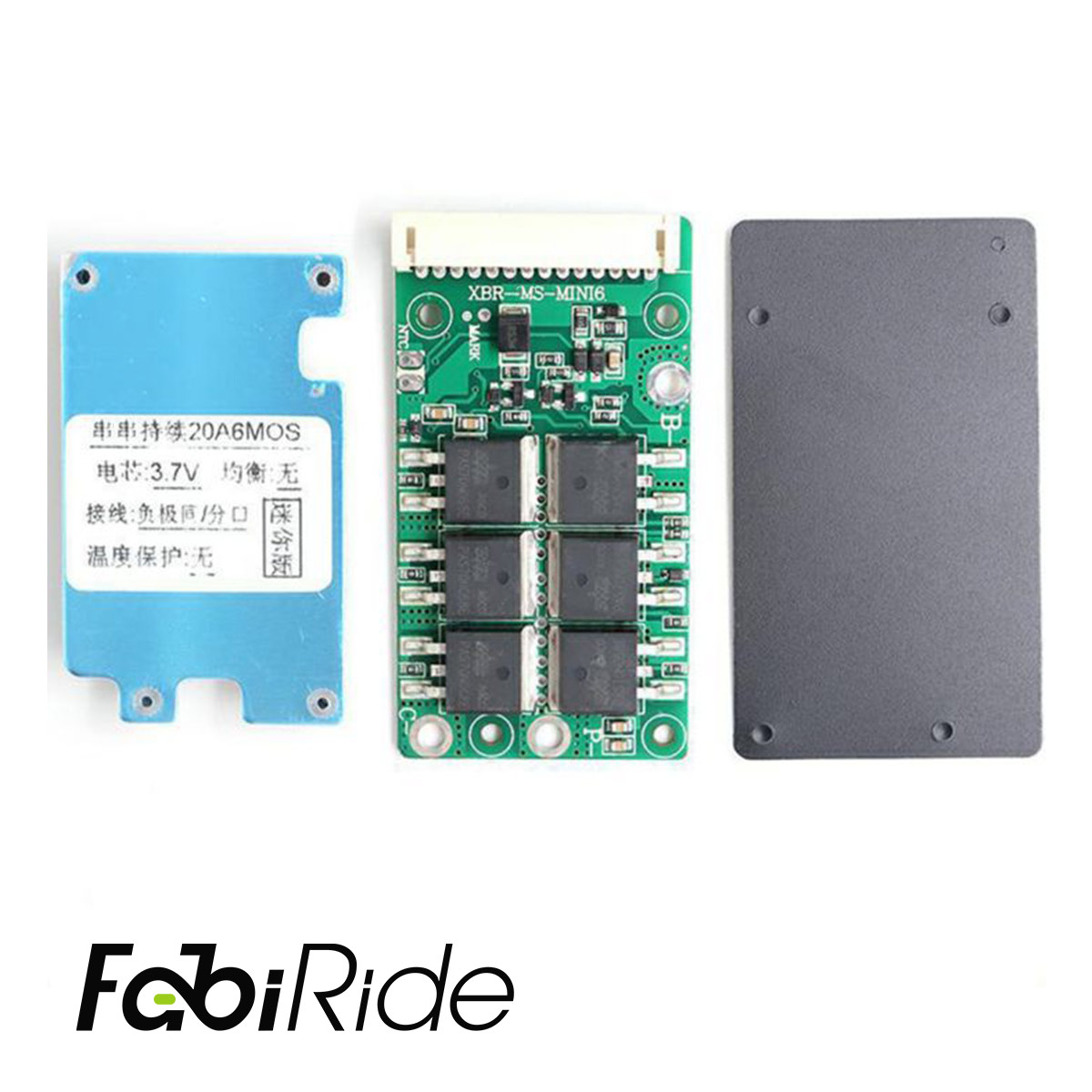

This board mounts inside the battery pack and is wired according to the connection diagram. It stores no energy of its own. It is neither a charger nor a motor controller. Instead, it performs one clear job. It protects the cells and evens out their voltages. The module measures 63 x 34 x 7, so it slips into standard 14S pack enclosures.
Balancing is passive and runs during charging. Therefore voltage differences between cell groups shrink with every charge cycle. As a result, the pack holds a more even state for longer. Installation requires soldering and correct wiring, so a qualified builder is recommended.
Key Benefits
- Overcharge protection – the board disconnects the circuit when cell group voltage rises above the allowed limit.
- Over-discharge protection – the 14S pack is disconnected when voltage drops too low.
- Short circuit protection – the circuit breaks automatically, with no user intervention needed.
- Overcurrent protection – the 20 A limit stops the pack from working under excessive load.
- Passive balancing – all 14 cell groups are levelled, so imbalance between cells is reduced.
- Full capacity use – balanced groups let you use the whole pack capacity, not just the weakest group.
- Longer service life – more even cells and steadier temperature deliver more charge and discharge cycles.
- Compact 63 x 34 x 7 housing – the board fits inside standard 14S pack casings.
Who Is This For?
This protection board suits electric bikes, electric scooters and other 52 V light electric vehicles built on a 14S configuration. It matches packs whose system draws up to 20 A of continuous current. Battery manufacturers, repair workshops and experienced builders are the main users.
Use it when assembling a new 14S pack from scratch. It also works as a replacement for a failed protection board in an older 52 V battery. Furthermore, it is a sensible choice when cell balance must be restored in a pack with large voltage differences between groups.
Because mounting involves soldering and wiring to a diagram, this board is aimed at people who already build packs. Cell chemistry must be lithium-ion (Li-ion) for the 52 V figures to apply.
Technical Specifications
| Type | BMS 14S 52V 20A protection board |
| Configuration | 14S (14 cell groups in series) |
| Nominal voltage | 52 V |
| Fully charged pack voltage | 58.8 V |
| Continuous current | up to 20 A |
| Cell chemistry | lithium-ion (Li-ion) |
| Balancing | passive, during charging |
| Protections | overcharge, over-discharge, short circuit, overcurrent |
| Dimensions | 63 x 34 x 7 |
| Mounting | inside the battery pack, per connection diagram |
Why Choose the BMS 14S 52V 20A?
This board combines four protections in a single module. Consequently, separate fuses or external limiters are not needed inside the pack. Fewer parts also means less wiring inside a tight enclosure.
The 20 A rating is clearly defined. Therefore it is easy to check whether the board matches your controller’s current demand. That figure, together with the 14S cell count, is the main compatibility criterion for any 52 V build.
Automatic disconnection triggers once limits are exceeded. In this way, the risk of thermal damage during incorrect use is reduced. Passive balancing then keeps the 14 groups aligned charge after charge.
Frequently Asked Questions
Will the BMS 14S 52V 20A fit my 52 V e-bike battery?
- It fits 14S configuration packs only.
- The chemistry must be lithium-ion, because a 14S LiFePO4 pack gives roughly 44.8 V instead of 52 V.
- Your system must draw no more than 20 A.
Can I use it with a load above 20 A?
- No, 20 A is the continuous current limit.
- Heavier loads require a BMS with a higher current rating.
- Once the limit is passed, overcurrent protection triggers and the circuit disconnects.
When does balancing take place?
- Balancing is passive and happens during charging.
- Cells are not balanced while discharging.
- All 14 cell groups are balanced.
What voltage counts as a full charge?
- A fully charged 14S pack reads 58.8 V.
- Nominal voltage is 52 V.
Does this board work in an electric scooter as well as an e-bike?
- Yes, it suits electric scooters, electric bikes and other 52 V light electric vehicles.
- The pack must still be 14S with a draw of up to 20 A.
Is it a charger or a motor controller?
- No, it is only a protection and balancing board.
- It stores no energy itself.
- A separate charger and controller are still required.
How is it installed?

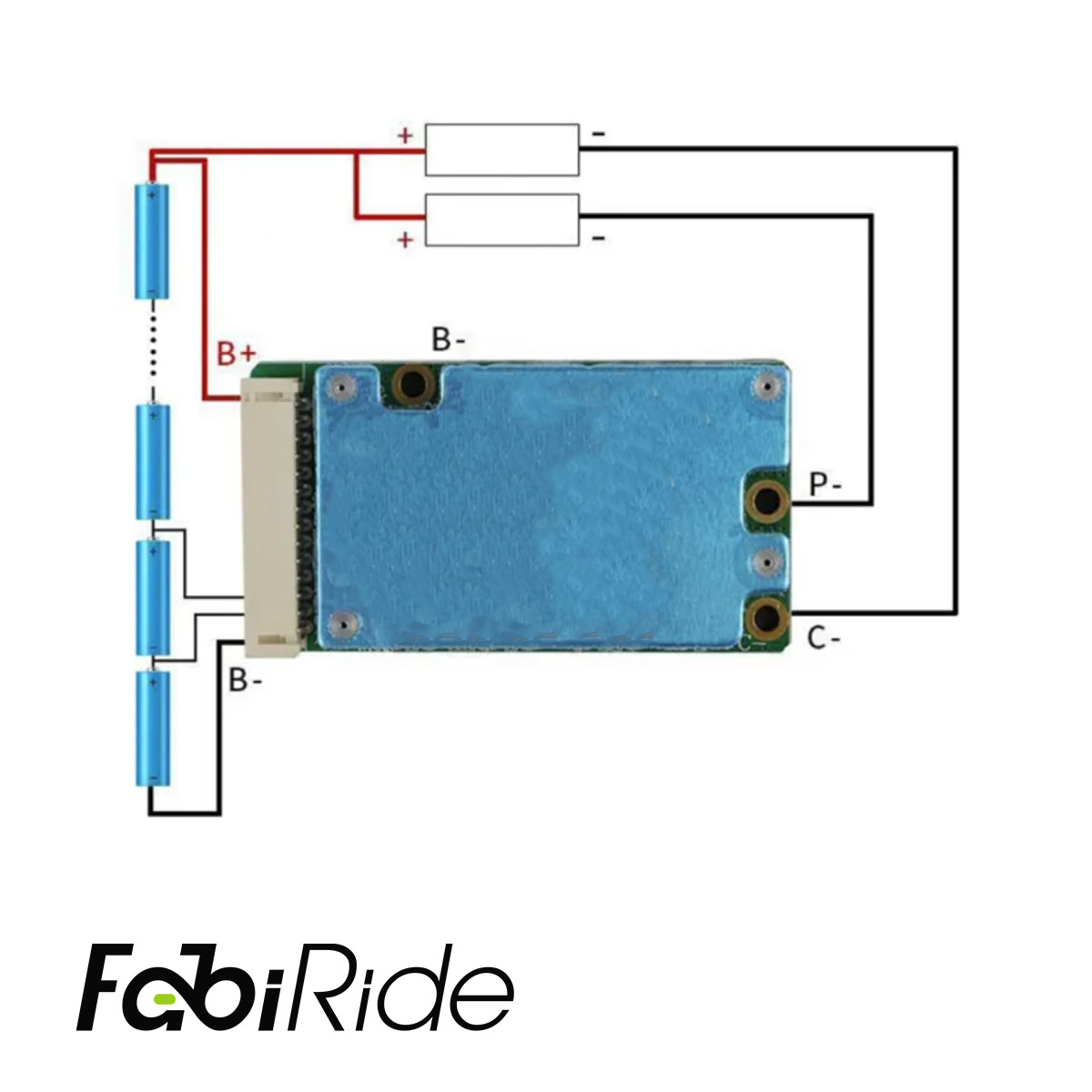

- It mounts inside the battery pack, wired to the connection diagram.
- Soldering and correct wire connections are needed.
- A qualified installer is recommended.
Will it fit inside my pack enclosure?
- The module measures 63 x 34 x 7.
- That compact size suits standard 14S pack casings.
For anyone building or repairing a 52 V lithium-ion pack, this 14S board covers protection and balancing in one compact unit. It guards against overcharge, over-discharge, short circuit and overcurrent, while passive balancing keeps all 14 cell groups even during charging.
