Magura Ø203 mm Brake Rotor – Dovetail Interlink, E-MTB & S-Pedelec

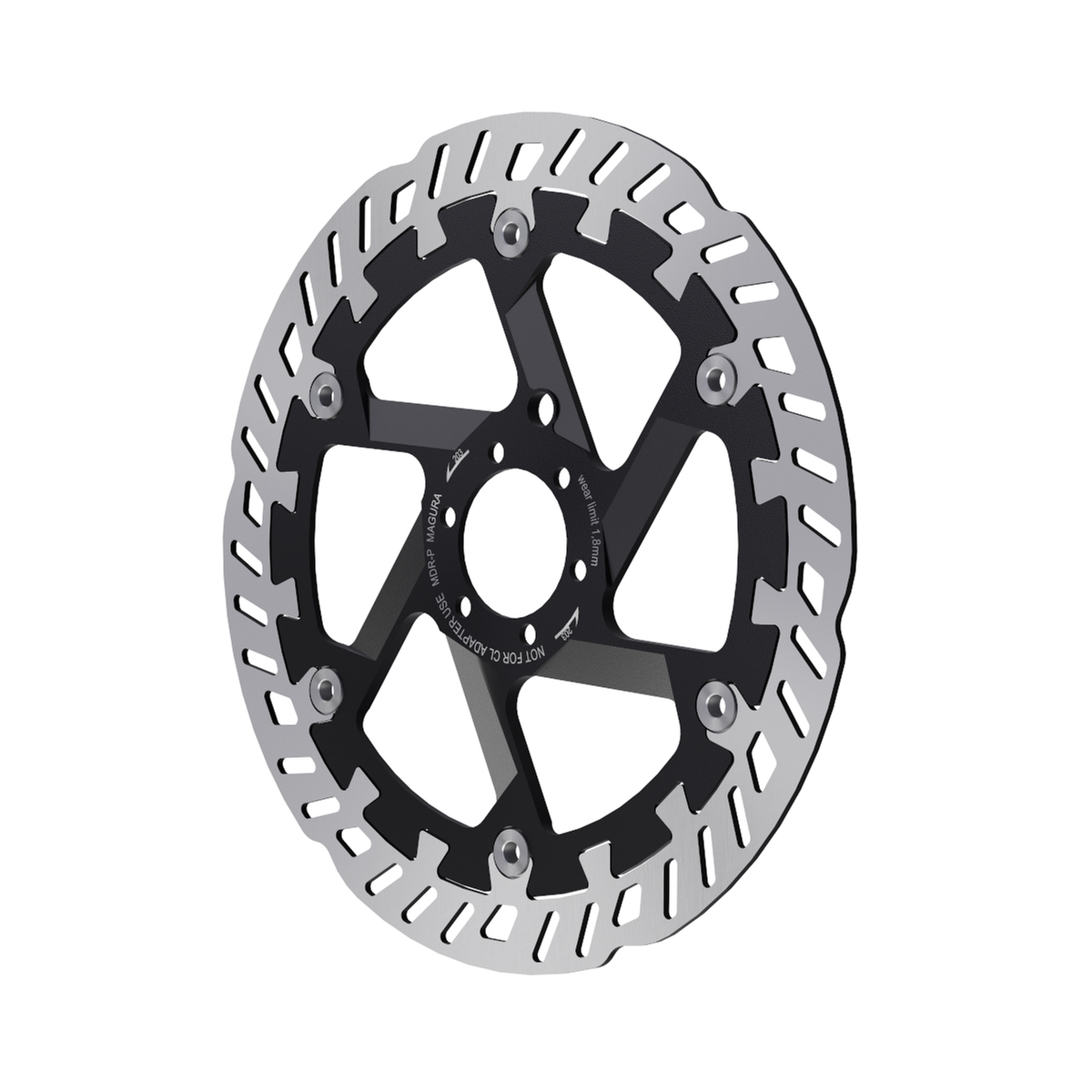

The Magura Ø203 mm brake rotor is a one-piece disc built around patented Dovetail Interlink Technology. It uses the 6-bolt (IS) mounting standard, so it bolts straight onto hubs with the international standard interface. The rotor is designed for E-MTB, S-Pedelec, enduro, trail and city bikes. It also fits SurRon and Talaria platforms, plus other e-moto conversions, provided the caliper and adapters are set up for a 203 mm rotor.

Construction is the headline here. The outer braking track and the inner spider are joined mechanically using a dovetail interlock. That joint raises stiffness and improves heat management across the whole disc. As a result, braking stays predictable even under heavy load. The steel used is resistant to both wear and high temperature.

The Ø203 mm diameter generates more braking torque than smaller discs. Furthermore, the larger surface gives precise modulation on long descents. While the rotor is optimised for electric platforms, it works equally well on classic MTB, gravel and city bikes.

Key Benefits

• Patented Dovetail construction – fewer vibrations and less rotor pumping, so pad contact stays even.
• High heat resistance – reduced brake fade on long, sustained descents.
• Longer service life – both the pads and the rotor itself wear more slowly.
• Ø203 mm diameter – more stopping power under load than standard smaller discs.
• Built for e-platforms – dependable braking at higher masses and higher speeds.
• Precise modulation – braking force is easy to meter on technical trails and in traffic.
• Shorter stopping distance – a real advantage in E-MTB and S-Pedelec riding.
• Quieter operation – less noise and vibration during aggressive braking.

Who Is This Rotor For?

This disc suits E-MTB, S-Pedelec, enduro, trail and city bikes. In addition, riders use it on SurRon and Talaria machines and on other e-moto conversions. That application is valid only when the brake caliper and adapters are matched to a 203 mm rotor.

The rotor also performs on classic MTB, gravel and city bikes. Because of that range, it is chosen by riders carrying cargo or towing trailers. It is equally popular with commuters who brake frequently in city traffic. Long alpine descents are another clear use case, since heat management matters most there.

The mounting interface is the 6-bolt (IS) version. Therefore, check your hub interface before ordering. Center Lock hubs will require a matching adapter.

What’s in the Box

• Magura Ø203 mm brake rotor – one rotor

Technical Specifications

Why Choose the Magura Ø203 mm Rotor

The two-part construction makes the difference. Instead of a single continuous disc, this rotor uses a mechanical dovetail joint between the two rings. Consequently, the rotor distorts less when thermal load builds up.

Size is the second differentiator. A 203 mm diameter generates more braking torque than a common 180 mm disc. That makes it a sensible match for heavier electric bikes and faster platforms.

Third, the disc works with every pad type. You can run organic compounds for quiet city riding, or switch to sintered metallic pads for muddy conditions and long trail days.

Installation Tips

• Confirm that your fork, frame and caliper are cleared for a 203 mm disc.
• Tighten the rotor bolts in a cross pattern using medium-strength threadlocker.
• Follow the manufacturer’s specified Nm torque figure.
• Bed the rotor in with 20-30 moderate-intensity braking cycles.

Frequently Asked Questions

Will this rotor fit a SurRon or Talaria?

• Yes, it is used on SurRon and Talaria machines and other e-moto conversions.
• The caliper and adapters must be set up for a 203 mm rotor.

Is it suitable for an E-MTB or S-Pedelec?

• Yes, these are the primary applications for this disc.
• The larger diameter handles the higher masses and speeds involved.

What mounting standard does it use?

• It is the 6-bolt (IS) version.
• Center Lock hubs need a suitable adapter.

Which brake pads work with it?

• Organic, semi-metallic and metallic (sintered) pads all work.
• Organic compounds run quieter; sintered pads suit mud and long descents.

What does Dovetail Interlink Technology actually do?

• It joins the outer braking ring and inner ring with a dovetail interlock.
• Stiffness rises and heat management improves as a result.

Can I use it on a regular MTB or gravel bike?

• Yes, it works on classic MTB, gravel and city bikes.
• Check that the frame, fork and caliper accept a 203 mm disc first.

How many rotors come in the package?

• One Ø203 mm rotor is supplied.
• Rotor bolts are not included in the package.

Does it reduce brake fade?

• Yes, the heat-resistant steel and dovetail joint limit fade on long descents.
• Bedding the rotor in properly helps performance from the first ride.

Between the dovetail joint, the 203 mm diameter and the wear-resistant steel, this Magura rotor is a straightforward upgrade for heavier and faster machines. Match it to a 6-bolt hub, confirm your caliper clearance, and bed it in before your first big descent.
