VOLspeed speed limiter tuning module (speed limiter removal module) is made only for the Yamaha MORO 07 e-bike with the Yamaha PW-X3 mid-drive motor and Interface X.
This V3 module installs in the motor area and stays invisible from the outside. It runs as true plug-and-play (plug-and-ride) with automatic initialization. No computer or phone is required for setup.
The tuning can be switched on or off using the arrow buttons on the handlebar control unit. When enabled, the assist speed limit is adjustable from 25–45 km/h (15.5–28 mph), and the last selected limit is saved. After each bike power-up, tuning starts disabled.
Key benefits of the VOLspeed Yamaha MORO 07 tuning module
- Model-specific compatibility – designed only for Yamaha MORO 07 with Yamaha PW-X3 and Interface X.
- Adjustable limit 25–45 km/h – set your preferred max assist speed in 1 range using the control unit arrow buttons.
- On/off from the cockpit – enable or disable tuning via the arrow buttons with no extra devices.
- Automatic initialization – the module is ready to ride right after installation with plug-and-play logic.
- Dynamic Mode – provides a smoother cut-off and reduces the abrupt “wall effect” feel at the limit.
- Correct speed and distance with ANT+ LEV displays – speed and trip distance stay accurate with an ANT+ LEV compatible screen.
- Accurate range forecast with tuning active – remaining range is calculated based on current riding style while tuning is on.
- Corrected odometer – total mileage remains correct even after removing the module because kilometers are corrected in motor control.
Who is this for?
This VOLspeed e-bike tuning module (tuning module) targets riders using a Yamaha MORO 07 equipped with the Yamaha PW-X3 center motor (mid-drive) and the Interface X interface. The fitment is strict, so it is not intended for other Yamaha drive systems or other bike models.
The product suits riders who want derestriction (speed limiter removal) while keeping a defined, sporty ceiling. For example, the limit can be set to 32 km/h to balance a more athletic pace with moderate battery use.
Dynamic Mode spreads power reduction across a broader speed range. As a result, the assist drop near the set limit feels noticeably less sudden compared with a hard cut.
Package contents

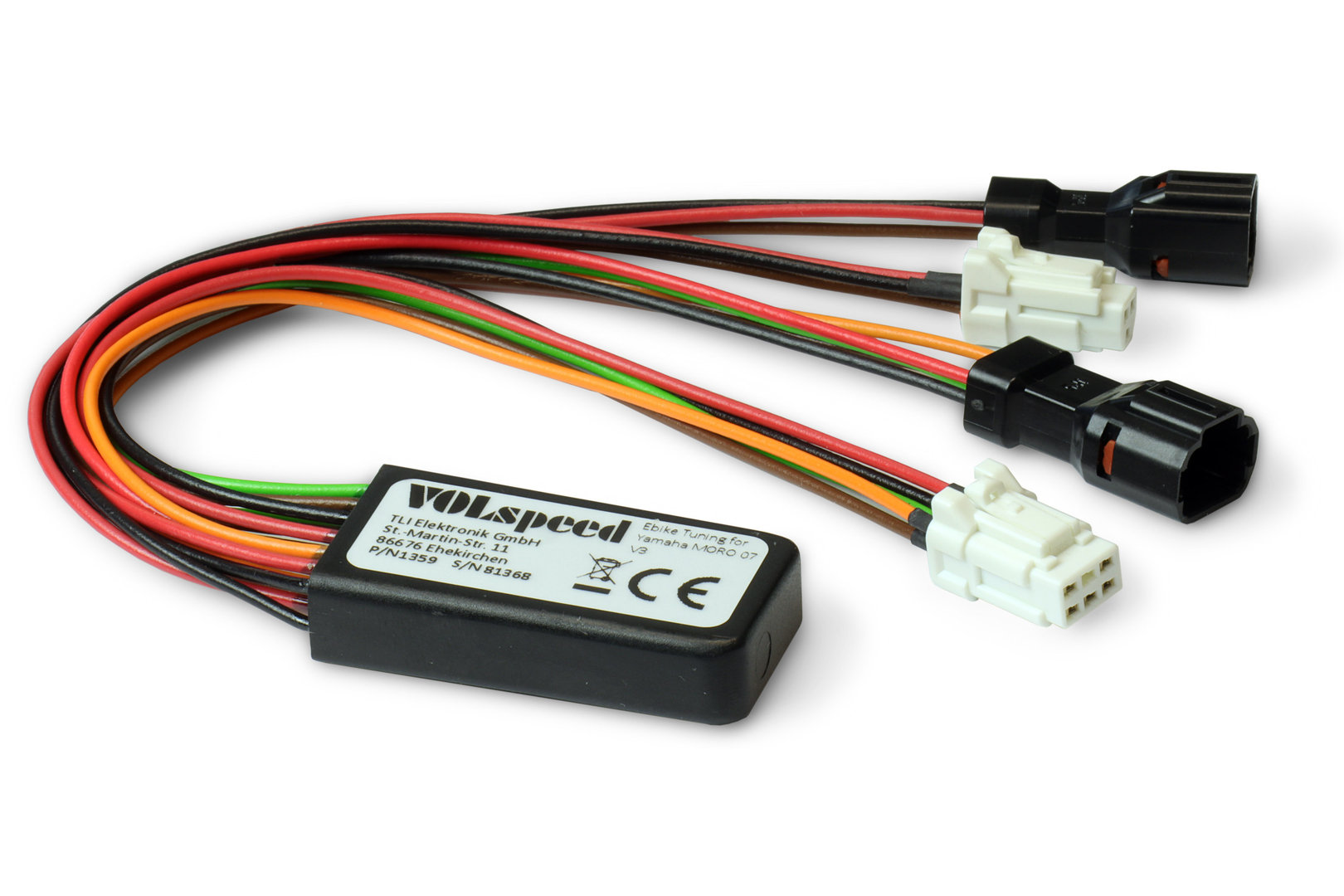

- VOLspeed E-Bike Tuning for Yamaha MORO 07 V3 module
- User manual (instruction manual)
Technical specifications
| Product type | Electric bike tuning module (speed limiter tuning module) |
| Compatibility | Only Yamaha MORO 07 with Yamaha PW-X3 motor and Interface X |
| Housing dimensions | 37 mm × 19 mm × 9 mm (1.46” × 0.75” × 0.36”) |
| Cable length | Approx. 140 mm (5.5”) |
| Weight | 0.025 kg (0.9 oz) |
| Power consumption | 0.1 W |
| Supply voltage | 5 VDC |
| Adjustable speed limit | 25–45 km/h (15.5–28 mph) |
| Control method | Arrow buttons on the handlebar control unit |
| Behavior after bike power-up | Tuning is always disabled after switching the bike on |
| ANT+ LEV display function | Correct speed and distance display; accurate range forecast with active tuning |
| Odometer handling | Total odometer stays correct even after module removal due to kilometer correction in motor control |
Why choose this VOLspeed module?
This V3 VOLspeed module focuses on bike-native control. Tuning and speed limit adjustment run through the MORO 07 control unit arrow buttons, so there is no reliance on a phone app or PC software.
The module is also designed around ride feel. Dynamic Mode reduces the harshness at the set limit by smoothing the assist cut-off, which helps when you ride close to your chosen ceiling.
For riders using an ANT+ LEV compatible display, the module supports correct speed and distance readings. It also keeps range prediction meaningful while tuning is active, because the estimate follows current riding style.
FAQ
Is this VOLspeed speed limiter module compatible with my Yamaha MORO 07?
- Yes, if your bike is a Yamaha MORO 07 with the Yamaha PW-X3 motor and Interface X.
- No, if your bike uses a different Yamaha drive system or a different interface than Interface X.
How do I turn the tuning on and off?
- Use the arrow buttons on the handlebar control unit to switch tuning on or off.
- No phone, computer, or external programmer is needed.
What speed limit range can I set with VOLspeed V3?
- The adjustable assist limit range is 25–45 km/h (15.5–28 mph).
- The value is set using the control unit arrow buttons.
Does it remember my last selected limit?
- Yes, the module saves the last set speed limit.
- After the bike is switched on, tuning starts disabled even though the last limit remains stored.
What is Dynamic Mode on this Yamaha MORO 07 tuning module?
- Dynamic Mode provides a smoother cut-off near the limit.
- It reduces the noticeable “wall effect” by spreading power reduction across a wider speed range.
Will my speed and distance display stay correct?
- With an ANT+ LEV compatible display, speed and traveled distance are shown correctly.
- With tuning active, the remaining range forecast follows your current riding style.
What happens to the odometer if I remove the module?
- The total odometer remains correct even after removal.
- Kilometers are corrected in the motor control, so the reading stays consistent.
Where is the module installed on the Yamaha MORO 07?
- It is installed in the motor area.
- Once fitted, the module is not visible from the outside.
VOLspeed E-Bike Tuning for Yamaha MORO 07 V3 combines plug-and-play installation, cockpit button control, and a 25–45 km/h adjustable limit in a compact, hidden module for PW-X3 + Interface X bikes.
