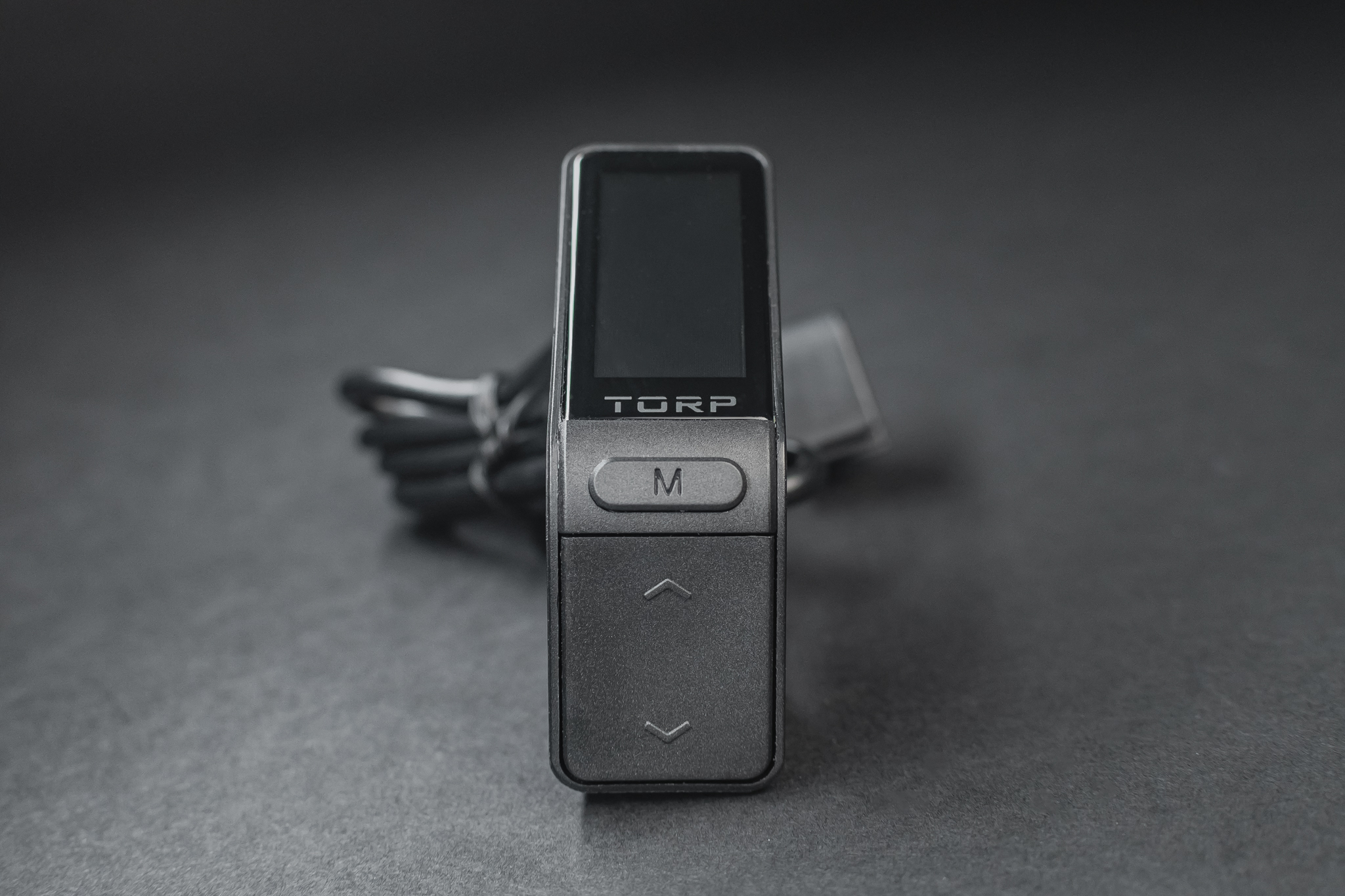

Torp Display HMI Module (display / HMI) fits Torp TC500 gen 1.X and Torp TC1000 gen 1.X controllers used on SurRon Light Bee and Talaria MX3 / MX4 / MX5 electric off-road motorcycles. This compact handlebar-mounted screen connects directly to the Torp controller wiring loom (wiring harness). It shows controller data, speed, and battery data while you ride.
This Torp Display module also adds in-ride control through the Torp controller ecosystem. It lets you switch riding modes from the HMI (human-machine interface). On supported models, it can initiate reverse and activate the daily mode button.
The display supports launch (launch) and lift assist (lift assist) functions. For TC500 2.X and TC1000 2.X controllers, these functions are planned to be added in Spring 2026.
Key benefits of the Torp Display HMI Module

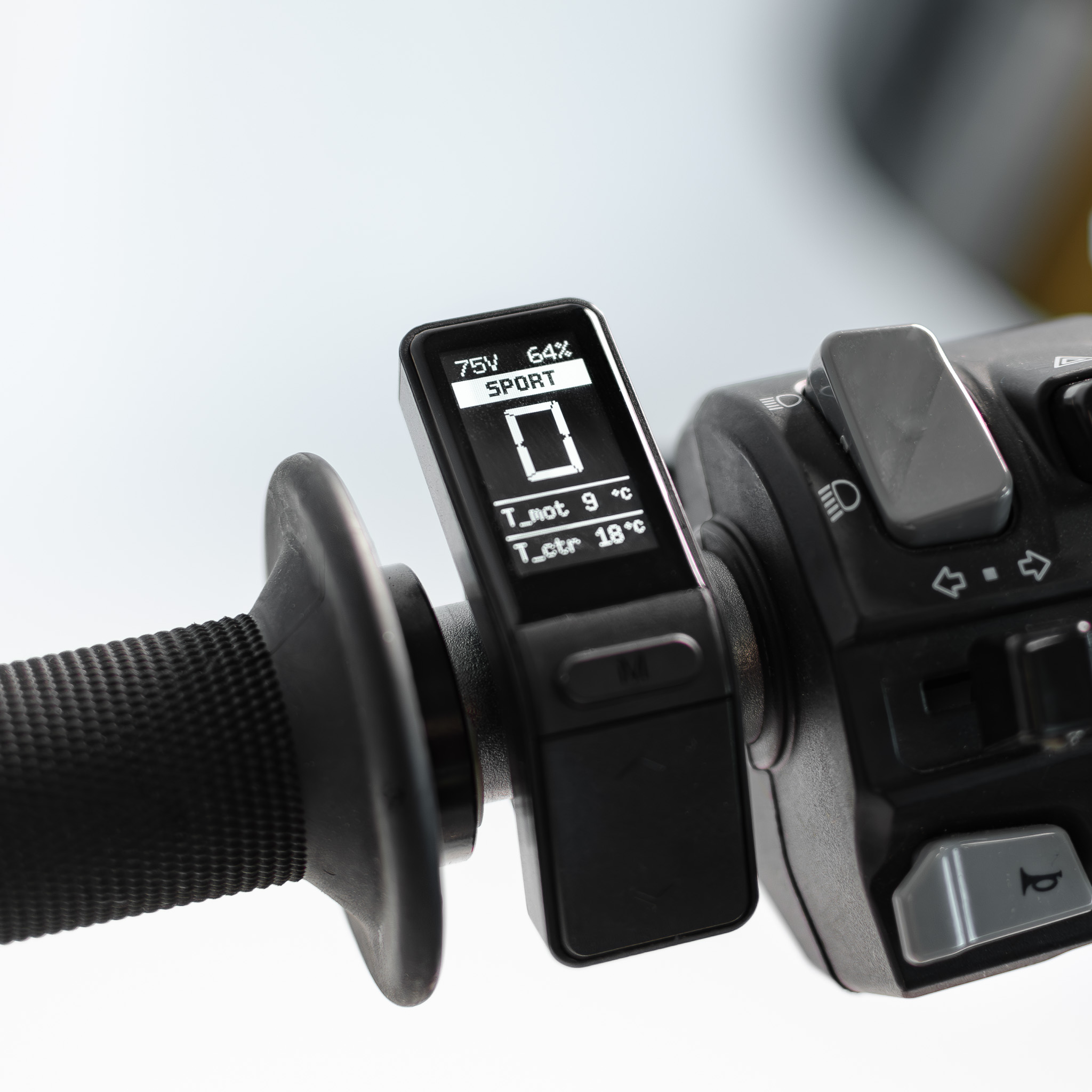

- Mode switching – changes riding modes through the Torp controller HMI (human-machine interface) while the display is mounted on the handlebar.
- Controller data on-screen – shows controller data (controller data) so you can monitor Torp controller status during a ride.
- Speed display – displays speed information directly on the same compact screen.

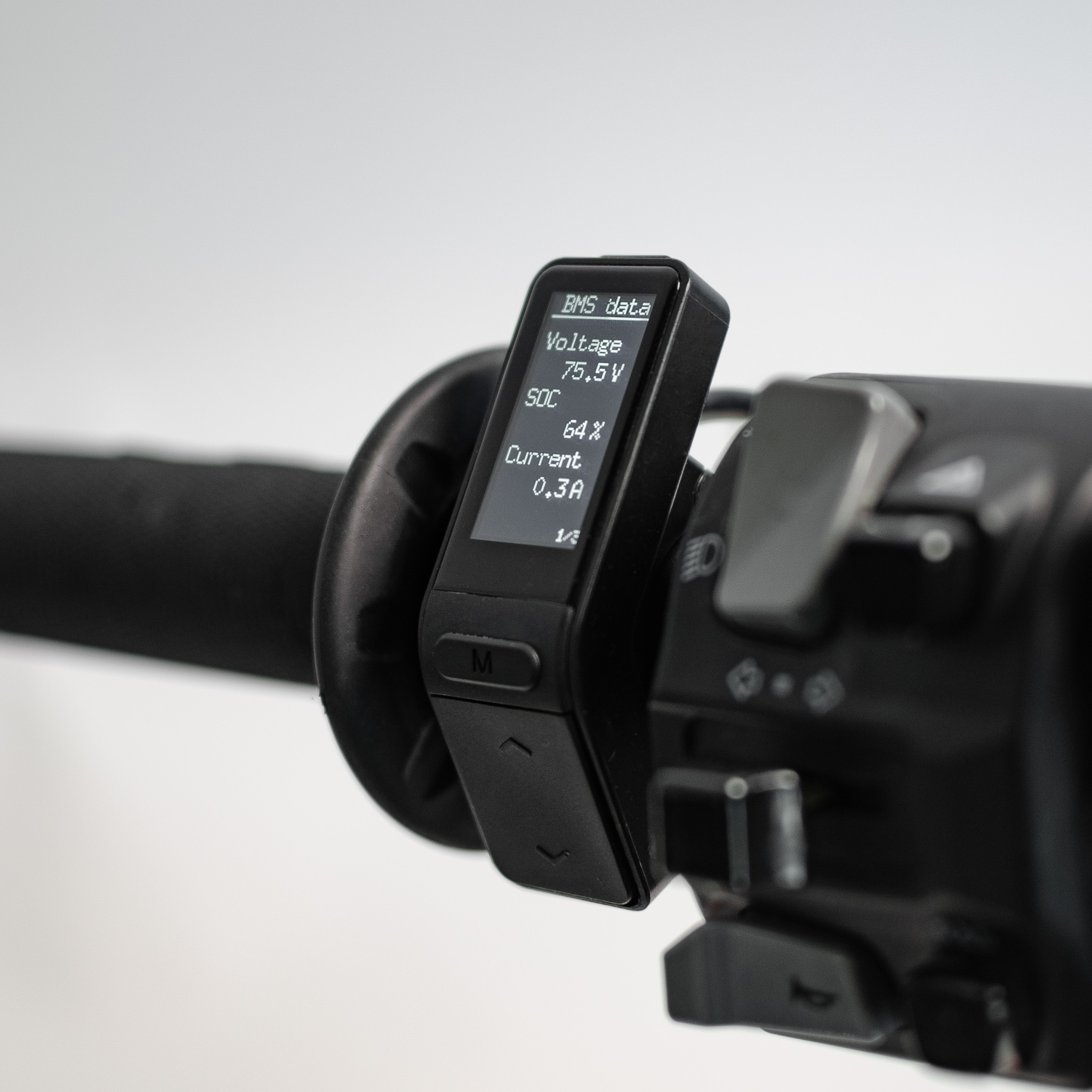

- Battery data display – shows battery data (battery data) so key energy parameters stay visible.
- Reverse initiation – can initiate reverse (reverse) on SurRon Light Bee and Talaria MX3 / MX4 platforms.
- Daily mode button activation – activates the daily mode button (daily mode) on SurRon Light Bee and Talaria MX3 / MX4 / MX5 platforms.

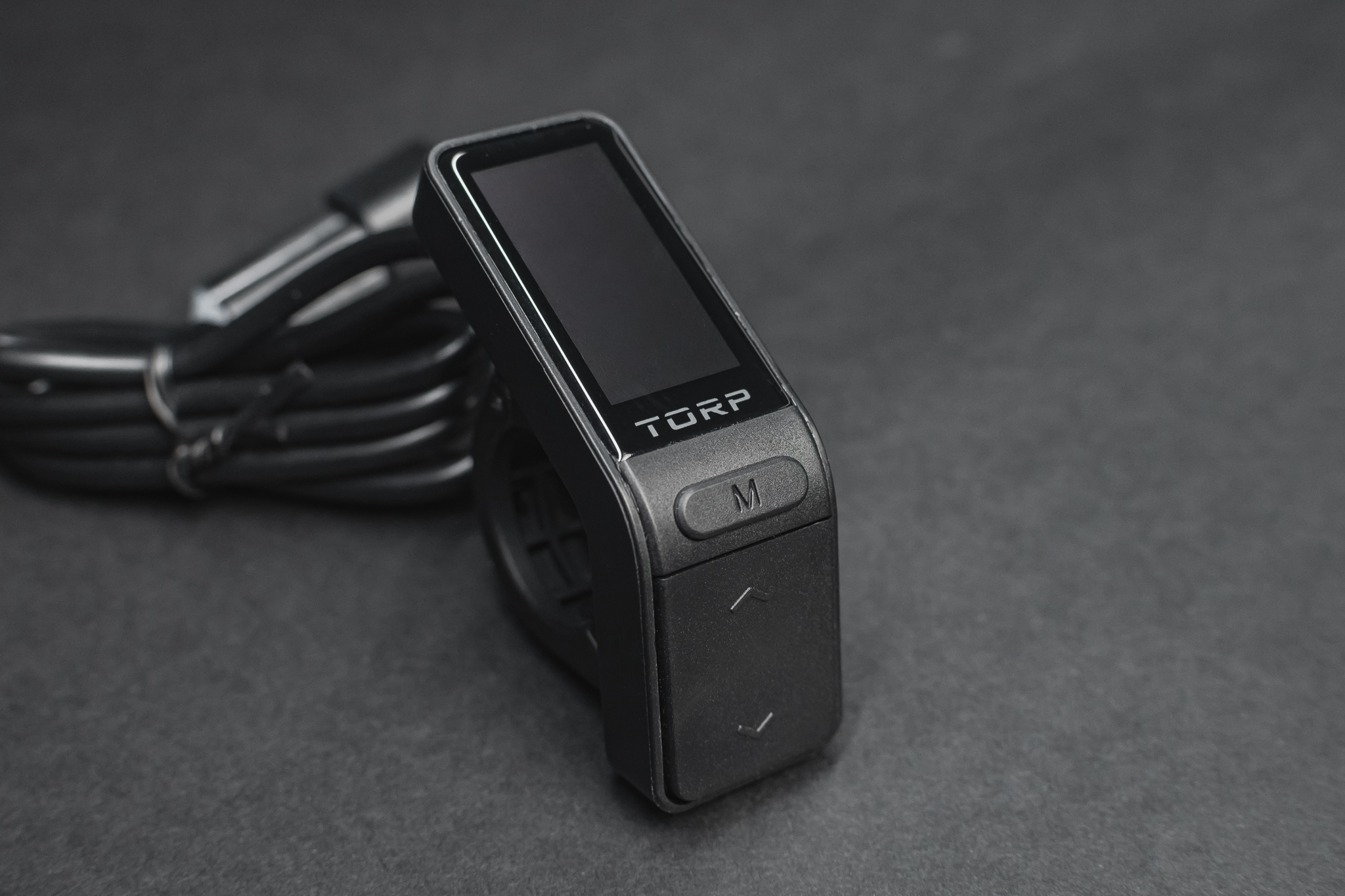

- Compact size – 40 x 20 mm footprint is designed for handlebar installs where space is limited.
- Low mass – 0.06 kg weight is specified for a lightweight HMI (display) solution.
Who is this for?
This Torp Display HMI module is for riders running a Torp TC500 gen 1.X or Torp TC1000 gen 1.X electric motor controller and wanting a handlebar screen for control and visibility. It is aimed at monitoring Torp controller status and viewing ride-critical information like speed and battery data in real time.
The platform-specific functions are defined by the bike model. Reverse initiation is intended for SurRon Light Bee and Talaria MX3 / MX4. Daily mode button activation is intended for SurRon Light Bee and Talaria MX3 / MX4 / MX5.
Important for SurRon Light Bee and SurRon Ultra Bee users: if you have a controller with the 3-connector wiring harness version, you need a separately purchased 5-connector Replacement Wiring Loom. This note does not apply to Talaria MX3 or Talaria MX4 users.
Package contents
- 1 x Torp Display screen module (display / HMI)
- 1 x hex key (Allen / imbus) for installation
Technical specifications
| Product | Torp Display screen module (display / HMI) |
| Mounting location | Handlebar mounted |
| Controller connection | Direct connection to Torp controller wiring loom (wiring harness) |
| Displayed data | Controller data, speed, battery data |
| Control functions | Riding mode switching; reverse initiation (SurRon Light Bee, Talaria MX3/MX4); daily mode button activation (SurRon Light Bee, Talaria MX3/MX4/MX5) |
| Launch & lift assist support | Launch (launch) function and lift assist (lift assist); planned for TC500 2.X and TC1000 2.X in Spring 2026 |
| Compatible controllers | TC500 gen 1.X; TC1000 gen 1.X |
| Dimensions | 40 x 20 mm |
| Weight | 0.06 kg |
Why choose the Torp Display HMI Module?
This module is designed around the Torp controller ecosystem because it connects straight into the Torp wiring loom (wiring harness). That direct connection is what enables HMI-driven controls like riding mode switching and model-specific functions like reverse initiation or daily mode activation.
The display focuses on the information you typically want on the handlebar. It presents controller data, speed, and battery data on a small 40 x 20 mm module. The specified 0.06 kg mass keeps the HMI setup lightweight on an off-road cockpit.
Installation is supported with the included hex key (Allen / imbus). This keeps the mounting process aligned with the handlebar placement that the Torp Display is designed for.
FAQ
Which controllers are compatible with the Torp Display HMI Module?
- Compatible with Torp TC500 gen 1.X and Torp TC1000 gen 1.X controllers.
- It is a handlebar-mounted display/HMI that connects directly to the Torp controller wiring loom.
Which bikes can use this Torp Display on SurRon and Talaria?
- Used on SurRon Light Bee and Talaria MX3 / MX4 / MX5 platforms when paired with TC500 gen 1.X or TC1000 gen 1.X.
- Reverse initiation is supported on SurRon Light Bee and Talaria MX3 / MX4 only.
What information does the display show while riding?
- It shows controller data (controller data) from the Torp controller.
- It shows speed on the screen.
- It shows battery data (battery data) for energy monitoring.
Can it switch riding modes from the handlebar?
- Yes, it supports riding mode switching through the Torp controller HMI (human-machine interface).
- The function works through the Torp controller ecosystem via the direct wiring loom connection.
Does it support reverse and daily mode?
- It can initiate reverse (reverse) on SurRon Light Bee and Talaria MX3 / MX4 models.
- It can activate the daily mode button (daily mode) on SurRon Light Bee and Talaria MX3 / MX4 / MX5 models.
Do SurRon Light Bee or Ultra Bee owners need an extra wiring loom?
- If your controller uses the 3-connector wiring harness, you need a separately purchased 5-connector Replacement Wiring Loom.
- This requirement is stated for SurRon Light Bee and SurRon Ultra Bee users.
- This note does not apply to Talaria MX3 or Talaria MX4 users.
Are launch and lift assist available on TC500 2.X or TC1000 2.X?
- The display supports launch (launch) and lift assist (lift assist) functions.
- For TC500 2.X and TC1000 2.X, these functions are planned to be added in Spring 2026.
Torp Display gives TC500 gen 1.X and TC1000 gen 1.X users a compact handlebar HMI for controller data, speed, and battery data, with model-specific reverse and daily mode functions where supported.
