The Torp TC500 2.X motor controller (inverter) is an aftermarket FOC controller designed for the Sur-Ron Light Bee e-moto and for TM25 electric motors. It supports 60–80 V nominal battery systems (22S), includes Bluetooth communication, and tunes through a Mobile App on iOS and Android.
This traction motor controller is built for high current e-motor use, and it combines power-focused limits with integrated protections. The TC500 2.X is rated for up to 350 A battery current* and up to 500 A phase current, while keeping inverter efficiency listed up to 99%.
The controller supports both sensored control with a HALL Encoder and sensorless control. It also supports communication with the original BMS (battery management system), plus multiple regenerative braking modes and multiple throttle modes.
Benefits
- FOC control (field oriented control) manages the traction motor using a dedicated FOC algorithm.
- 60–80 V nominal (22S) support fits common e-moto battery setups, with fully charged voltage up to 92.4 V.
- High current capability includes up to 350 A max battery current* and 500 A max phase current.
- Efficiency up to 99% is specified for the inverter for reduced losses at load.
- Bluetooth communication enables setup and control through a phone connection.
- Pre-calibrated setup is stated as ready without extra calibration steps.
- Built-in protections include overcurrent, overvoltage, undervoltage, and overtemperature protection.
Who is this for
The Torp TC500 2.X is intended for the Sur-Ron Light Bee electric motorcycle as an aftermarket motor controller (motor controller / inverter) upgrade. It is also listed as compatible with the TM25 electric motor, which makes it suitable for builds that move beyond stock configurations.
This controller is aimed at riders who want app-based configuration on iOS or Android, need support for the stock SurRon display, and require communication with the original BMS. It also fits setups where selectable regenerative braking modes and throttle modes are part of the tuning plan.
Technical specs
| Product type | Aftermarket motor controller (inverter) |
| Control method | FOC (field oriented control) |
| Battery voltage (nominal) | 60–80 V (22S) |
| Battery voltage (fully charged) | Up to 92.4 V |
| Max battery current | Up to 350 A* |
| Max phase current | Up to 500 A |
| Max power (by motor) | Up to 25 kW* (TM25); up to 17 kW* (stock SurRon e-motor); up to 18 kW* (stock Talaria MX4 e-motor) |
| Motor control | Sensored (HALL Encoder) and sensorless |
| Bluetooth | Yes |
| Mobile App | Yes, iOS and Android |
| Stock SurRon display | Supported |
| Regenerative braking | Multiple modes |
| Throttle modes | Multiple modes |
| Calibration | Pre-calibrated, no extra steps stated |
| BMS communication | Supports communication with original BMS |
| Operating temperature | -15 to 75 °C |
| Inverter efficiency | Up to 99% |
Why choose
The TC500 2.X combines FOC control with high-current limits that match traction motor demands in an e-moto. It also adds Bluetooth access and an iOS/Android app, which keeps setup and adjustments accessible without extra hardware.
This unit is specified to support the stock SurRon display and communication with the original BMS. It also includes multiple regen and throttle modes, plus protections for current, voltage, and temperature to help manage demanding riding conditions.
FAQ
Is the Torp TC500 2.X compatible with the Sur-Ron Light Bee?
- Yes, it is designed for the Sur-Ron Light Bee as an aftermarket motor controller (inverter).
- It is intended for traction motor control in an electric motorcycle (e-moto).
Does this controller work with a TM25 electric motor?
- Yes, it is listed as compatible with the TM25 motor.
- Maximum power is stated up to 25 kW* when paired with a TM25.
What battery voltage does the TC500 2.X support?
- It supports 60–80 V nominal battery systems (22S).
- Fully charged voltage is stated up to 92.4 V.
What are the current limits for battery and phase current?
- Maximum battery current is stated up to 350 A*.
- Maximum phase current is stated up to 500 A.
Does it support sensored and sensorless operation?
- Yes, it supports sensored control using a HALL Encoder.
- Yes, it also supports sensorless control.
Can I tune it from my phone?
- Yes, it includes Bluetooth communication for settings and control.
- The Mobile App is available for iOS and Android.
Does it support the stock SurRon display and the original BMS?
- Yes, support for the stock SurRon display is stated.
- Yes, it supports communication with the original BMS.
What is included in the box?

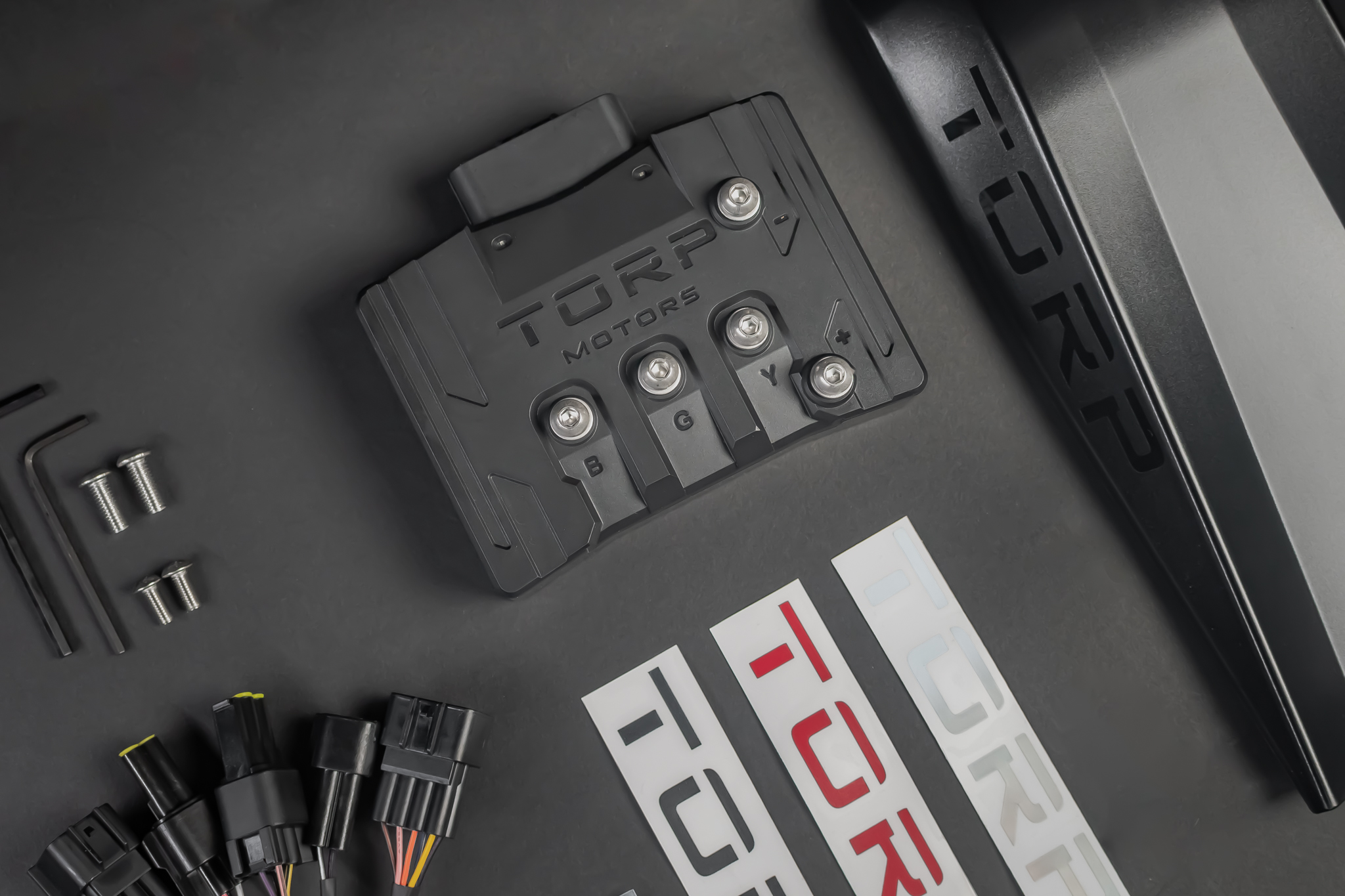

- 1x TC500 Controller (version 2.X).
- 1x wire harness, 1x plastic shield, mounting bolts and tools.
- 4x stickers, 1x dielectric grease pack (listed as silicone grease), and short instructions.
*Power and maximum battery current depend on the motor and setup. Stated reference figures include up to 17 kW with a stock SurRon e-motor, up to 18 kW with a stock Talaria MX4 e-motor, and up to 25 kW with a TM25.
