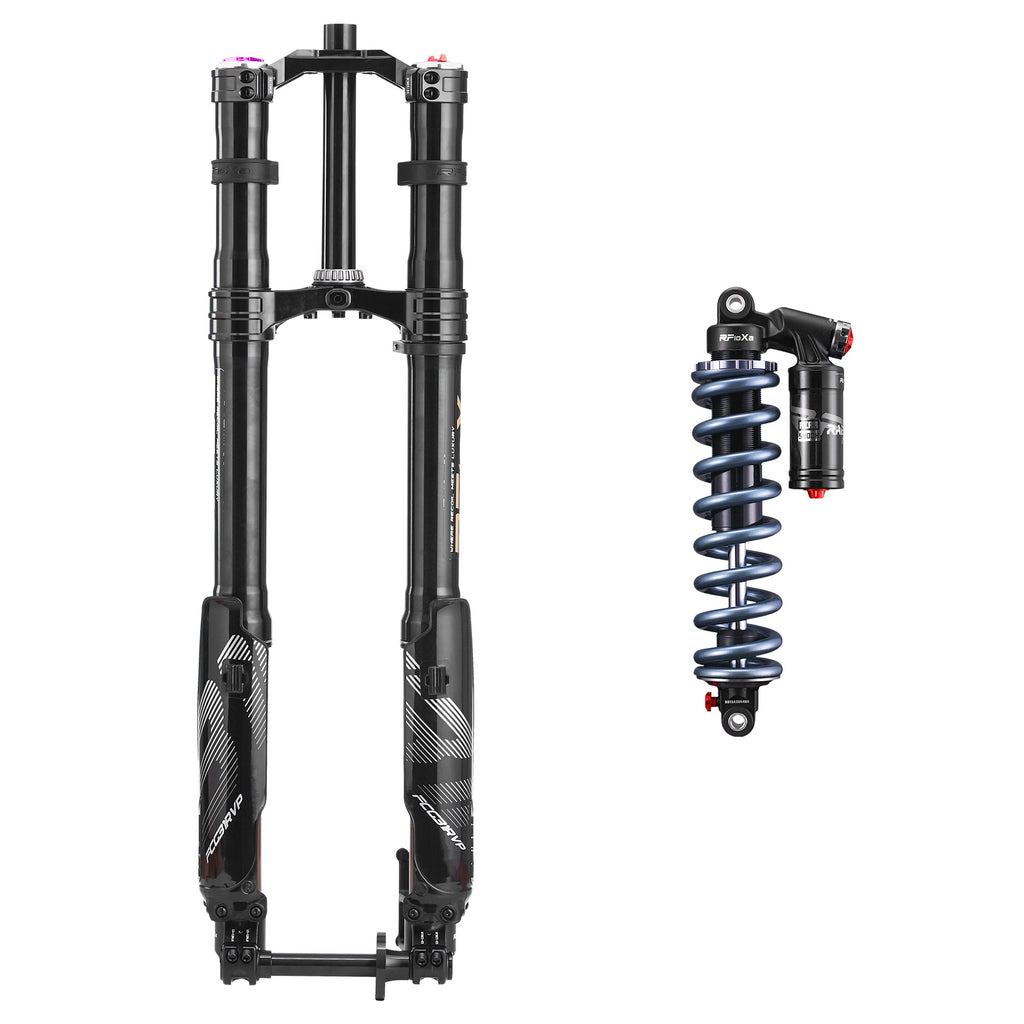

This RFLOXA Hawk31 Max USD fork (inverted fork) + RAB53RV 265L rear shock (rear damper) kit fits SurRon LBX/LBS/L1E, Talaria MX3/MX4/XXX/XXX Pro, and E-Ride Pro S/SS electric dirt bikes (e-moto). It is a suspension upgrade set built around an upside-down front fork with a CNC triple clamp (triple clamp) and a matching RAB53RV shock.
The front fork provides 203–228 mm of main piston travel, and it includes damping adjustments for HSC, LSC, rebound, and spring preload. The RAB53RV rear shock uses an external nitrogen reservoir and an oil-gas separation damping structure.
This Hawk31 Max fork kit is supplied without the upper headset bearing. By default, the fork is also supplied without a pressed-in lower headset bearing to increase cross-model fitment, and a note can be added at checkout if you need the lower bearing pressed in.
RFLOXA Hawk31 Max USD Fork + RAB53RV Key Benefits
- 203–228 mm travel – the Hawk31 Max main piston travel is specified in the 203–228 mm range for electric dirt bike setups.
- Full damping controls – the fork provides high-speed compression (HSC), low-speed compression (LSC), and rebound adjustments plus spring preload tuning.
- 37 mm inner tubes – ∅37 mm stanchions match the intended triple clamp geometry on this wider drop crown clamp kit.
- 74 mm caliper mount spacing – the fork uses 74 mm brake caliper mounting hole spacing for compatible front brake systems.
- Designed for a ∅203 mm rotor – the front end is set up for a ∅203 mm brake disc, and the disc size can be upgraded.
- AL6061-T6 + AL7075-T6 construction – the fork brackets use forged AL6061-T6 alloy, while the fork tubes use AL7075-T6 aluminum.
- 55CRSI spring wire – both the fork spring and the rear shock spring are specified as 55CRSI spring wire.
- External reservoir rear shock – the RAB53RV includes an external nitrogen reservoir with oil-gas separation damping.
Who This Suspension Kit Is For
This RFLOXA Hawk31 Max fork + RAB53RV shock package is intended for electric dirt bikes (electric motocross) and is also listed as suitable for downhill-style use. The front wider drop crown triple clamp kit data is based on Talaria Sting MX3/MX4, Sur-Ron Light Bee, and Eride Pro reference data.
Fork fitment (Hawk31 Max USD fork) is specified for: Talaria MX3, Talaria MX4, Talaria XXX, Talaria XXX Pro, SurRon LBX, SurRon LBS, SurRon L1E, E-Ride Pro S, E-Ride Pro SS 1.0, E-Ride Pro SS 2.0, Rawrr Mantis, Rawrr Mantis X, 79 Bike Falcon M, 79 Bike Falcon PRO, 79 Bike Falcon GT, Ventus One, Ventus One Plus (requires an 8 mm spacer for installation), RFN Apollo, Rerode R1, SRPNTMOTO.
Rear shock fitment is specified for the RAB53RV in 265L length. It fits: Talaria MX3, Talaria MX4, Talaria XXX, Talaria MX5, Altis Sigma, E-Ride Pro S, E-Ride Pro SS 1.0, E-Ride Pro SS 2.0, E-Ride Pro SS 3.0, SurRon LBX, SurRon LBS, SurRon L1E, Segway X-260, Segway X-160, 79 Bike Falcon M, 79 Bike Falcon PRO, Ventus One, Ventus One Plus (V1+), Rerode R1, Rawrr Mantis, SRPNTMOTO, Arctic Leopard-Clouded Leopard XE, XE PRO, XE PRO S.
Package Contents
- RFLOXA Hawk31 Max USD front fork – inverted fork supplied with damping adjusters and spring preload adjustment.
- CNC triple clamp – included triple clamp (triple clamp) for the fork assembly.
- RAB53RV rear shock (265L) – rear shock with external nitrogen reservoir and oil-gas separation damping structure.
Technical Specs
| Brand / Model | RFLOXA Hawk31 Max + RAB53RV |
| Product type | Suspension upgrade kit (USD fork + rear shock) |
| Front fork style | USD (inverted) front fork |
| Front fork travel | 203–228 mm (main piston travel) |
| Fork damping adjustments | HSC, LSC, rebound, spring preload |
| Inner tube diameter | ∅37 mm |
| Caliper mount spacing | 74 mm |
| Designed front rotor size | ∅203 mm (upgradeable) |
| Triple clamp | CNC triple clamp included |
| Fork bracket material | Forged AL6061-T6 aluminum alloy |
| Fork tube material | AL7075-T6 aluminum |
| Spring wire (fork + shock) | 55CRSI spring wire |
| Rear shock model | RAB53RV |
| Rear shock length | 265L |
| Rear shock reservoir | External nitrogen reservoir |
| Rear shock damping structure | Oil-gas separation |
| Headset bearings included | Upper headset bearing: not included; Lower headset bearing: not pressed in by default |
| Talaria lower bearing note | Talaria uses a different lower bearing than SurRon and requires a spacer; factory bearing kit can be used |
Why Choose This RFLOXA Hawk31 Max Fork Kit
This RFLOXA Hawk31 Max USD fork and CNC triple clamp combination is specified with ∅37 mm inner tubes and 74 mm caliper mount spacing, which helps match the stated triple clamp geometry. The fork is also set up around a ∅203 mm front brake disc standard, while keeping the disc size upgradeable.
The RAB53RV 265L rear shock adds an external nitrogen reservoir and an oil-gas separation damping structure. Both ends specify 55CRSI spring wire, and the fork uses a split material approach with forged AL6061-T6 brackets and AL7075-T6 tubes.
Fitment flexibility is handled through the headset bearing approach. The fork does not include the upper headset bearing, and the lower bearing is not pressed in by default so it can be adapted to more models. If you need the lower bearing pressed in, you can leave an order note, but Talaria installations are advised to keep it unpressed due to the Talaria-specific lower bearing and spacer requirement.
FAQ
Which bikes does the RFLOXA Hawk31 Max USD fork fit?
- Specified fork fitment includes Talaria MX3, Talaria MX4, Talaria XXX, Talaria XXX Pro, SurRon LBX, SurRon LBS, SurRon L1E, and E-Ride Pro S.
- It is also listed for E-Ride Pro SS 1.0 and SS 2.0, Rawrr Mantis and Mantis X, and 79 Bike Falcon M/PRO/GT.
- Additional listed models include Ventus One, Ventus One Plus (needs an 8 mm spacer), RFN Apollo, Rerode R1, and SRPNTMOTO.
Which bikes does the RAB53RV 265L rear shock fit?
- The RAB53RV in 265L length is specified for Talaria MX3, MX4, XXX, and MX5.
- It is also listed for E-Ride Pro S and E-Ride Pro SS 1.0, SS 2.0, and SS 3.0.
- Additional listed models include SurRon LBX/LBS/L1E, Segway X-260 and X-160, 79 Bike Falcon M/PRO, Ventus One/V1+, Rerode R1, Rawrr Mantis, SRPNTMOTO, Altis Sigma, and Arctic Leopard-Clouded Leopard XE/XE PRO/XE PRO S.
What travel and adjustments does the Hawk31 Max fork provide?
- Main piston travel is specified as 203–228 mm.
- Damping adjustments include HSC, LSC, and rebound.
- Spring preload adjustment is included on the fork.
What are the brake mounting specs on the front fork?
- Brake caliper mount hole spacing is 74 mm.
- The fork is designed around a ∅203 mm front brake disc.
- The rotor size is stated as upgradeable.
Are headset bearings included or pressed into the fork?
- The Hawk31 Max fork is not supplied with the upper headset bearing.
- By default, the fork is supplied without a pressed-in lower headset bearing to support more model fitments.
- If you need the lower bearing pressed in, you can leave a note in the order.
Is there a Talaria-specific note for the lower headset bearing?
- Talaria motorcycles are recommended to use the fork without pressing in the lower bearing by default.
- The Talaria lower bearing differs from SurRon and requires a spacer.
- A factory bearing kit can be used for the installation.
What materials and spring wire are specified for this kit?
- Fork brackets are specified as forged AL6061-T6 aluminum alloy.
- Fork tubes are specified as AL7075-T6 aluminum.
- Fork and shock springs are specified as 55CRSI spring wire.
This RFLOXA Hawk31 Max USD fork + RAB53RV 265L shock set bundles the CNC triple clamp and reservoir rear shock into one compatibility-focused upgrade for SurRon, Talaria, and E-Ride Pro platforms.
