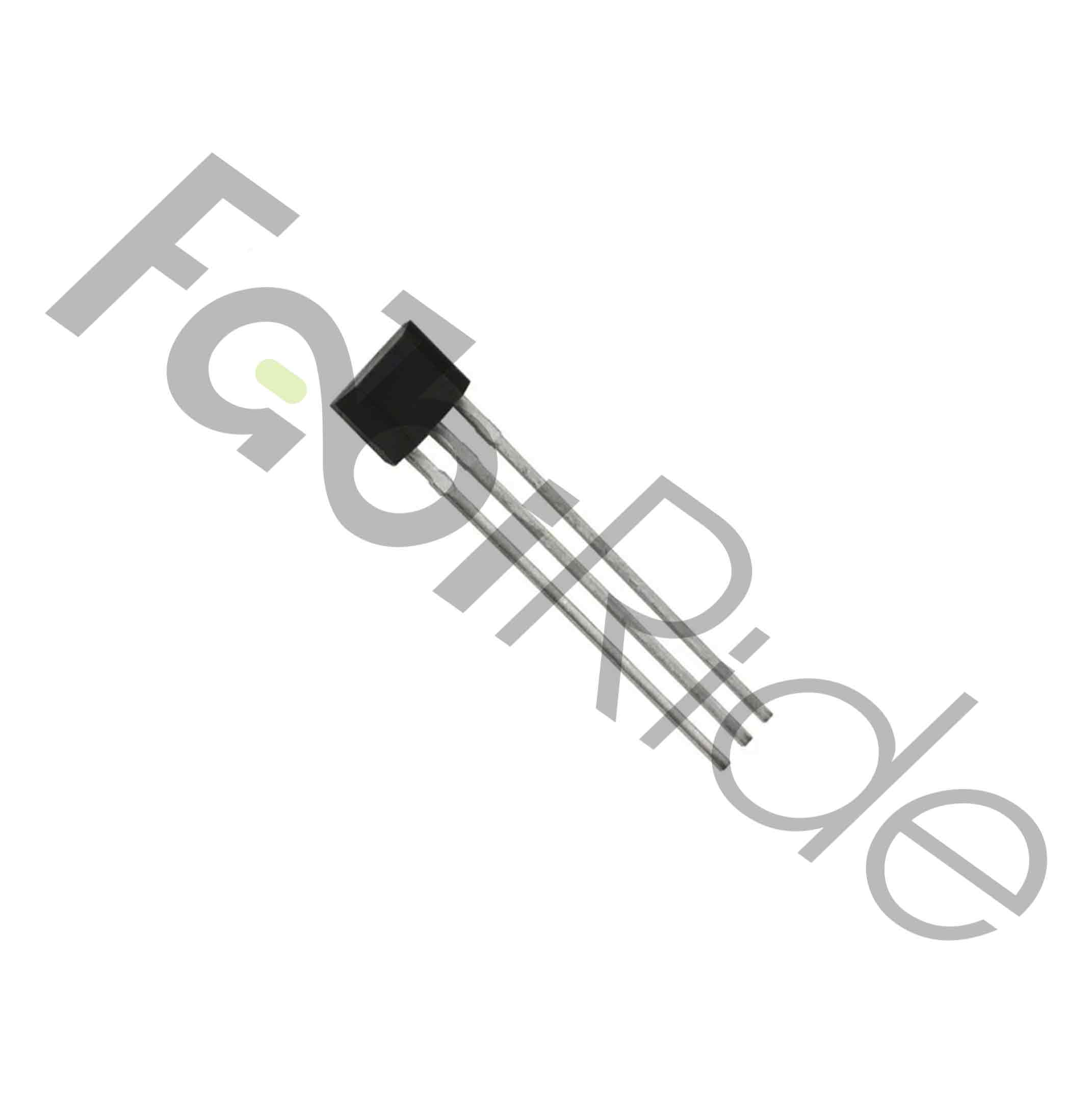

HALL Sensor for Motor – Rotor Position Sensor for BLDC Motors (Sur-Ron, Talaria)

This HALL sensor is a rotor position sensor built for brushless BLDC and permanent magnet (PM) motors. It fits Sur-Ron and Talaria electric motorcycles, electric bikes and electric scooters. The sensor reads the magnetic field of the rotor magnets. Then it sends a digital signal straight to the controller.

Supply voltage is typically 5 V DC. Wiring runs through three leads: VCC / GND / Signal. Each package holds 1 piece. Using these signals, the controller synchronises the motor phases correctly. As a result, starts become smooth and low-speed running stays stable. Torque control also improves across the whole rev range.

This is an internal motor electronics spare part, not an accessory. Therefore it is replaced by disassembling the motor and connecting to the existing wiring harness. The part suits repair technicians and owners facing jerky starts or unstable low-speed operation. Such symptoms often point to a failed rotor position sensor.

Benefits and Advantages

• Accurate rotor positioning – the controller knows the exact rotor position, so pull-away from standstill is even.
• Stable low-speed running – phase commutation stays correct even when riding slowly.
• Better torque control – precise phase synchronisation lets the motor deliver torque without jerking.
• Digital output – open-collector type signal, compatible with standard HALL inputs on controllers.
• 5 V power supply – works with the standard sensor supply found on controllers.
• Three-wire connection – VCC, GND and Signal connect according to your motor’s wiring.
• Reliable commutation in demanding conditions – the sensor works magnetically, without mechanical contact with the rotor.
• Single unit for replacement – you can swap only the failed sensor instead of the whole motor.

Who Is This Product For?

This HALL sensor is intended for Sur-Ron electric motorcycles, including the Light Bee X and Storm Bee. It also serves Talaria models such as the Sting and Sting R. These bikes use brushless mid-drive motors with three internal HALL sensors.

Beyond electric motorcycles, the sensor suits electric bikes and electric scooters. Any BLDC or PM motor fitted with HALL sensors is a candidate. Controller compatibility is straightforward as well. Most controllers supporting HALL inputs with a 5 V supply will work with this part.

Workshops rebuilding motors will find it useful for routine repairs. Owners diagnosing rough starts can also use it as a direct replacement. The specific version depends on the mechanical shape of the motor and the mounting position inside it.

Package Contents

• HALL sensor for motor – 1 pc.

Technical Specifications

Installation and Notes

Before replacing the sensor, switch off the power and disconnect the battery. In addition, always observe polarity. VCC, GND and Signal must be connected correctly. Incorrect wiring damages the sensor immediately.

Mount the sensor in the position intended by the manufacturer. Keep a proper air gap to the rotor magnets during fitting. Cleanliness matters just as much here. Metal dust settling on the sensor distorts the signal.

After replacement, run the controller auto-learn angle procedure if your controller offers one. Consequently, the phase position gets matched to the new sensor.

Why Choose This HALL Sensor?

This sensor is a functional motor component rather than an add-on. Replacing it therefore restores accurate phase commutation. It does not merely mask the symptom you noticed while riding.

Unlike sensorless control, HALL sensors supply rotor position information from zero speed. That difference matters most when pulling away on a hill or crawling through technical terrain. The magnetic operating principle also means no mechanical contact with the rotor, so nothing rubs or wears against moving parts.

Because the unit is sold individually, a single failed sensor does not force a full motor replacement. That keeps repairs focused and the rest of your motor electronics untouched.

Frequently Asked Questions

Does this HALL sensor fit a Sur-Ron Light Bee X?

• Yes, it is intended for Sur-Ron models including Light Bee X and Storm Bee.
• These models use brushless mid-drive motors with three internal HALL sensors.

Will it work with a Talaria Sting or Sting R?

• Yes, both Talaria Sting and Sting R are covered.
• The exact version depends on the motor’s mechanical shape and mounting point.

What voltage does the sensor need?

• Supply voltage is typically 5 V DC.
• It works with the standard sensor supply provided by most controllers.

How many wires does it have?

• Three leads: VCC, GND and Signal.
• They connect according to your motor’s existing wiring harness.

What are the signs of a failed rotor position sensor?

• Jerky starts from standstill are a common indicator.
• Unstable running at low speed is another frequent symptom.

Can I use it on an electric bike or scooter?

• Yes, it suits BLDC and PM motors with HALL sensors.
• The controller must support HALL inputs with a 5 V sensor supply.

Do I need to do anything after fitting it?

• Run the controller auto-learn angle procedure if it is available.
• This matches the phase position to the newly installed sensor.

How many pieces are included?

• One sensor per package.
• Motors using three internal sensors may require ordering accordingly.

Precise commutation starts with accurate rotor position data. With a working HALL sensor, the controller synchronises motor phases from the very first degree of rotation. Smooth pull-away, steady low-speed control and clean torque delivery follow from that. Check your motor’s mounting layout and wiring before ordering, then fit the sensor with correct polarity and a proper air gap.
