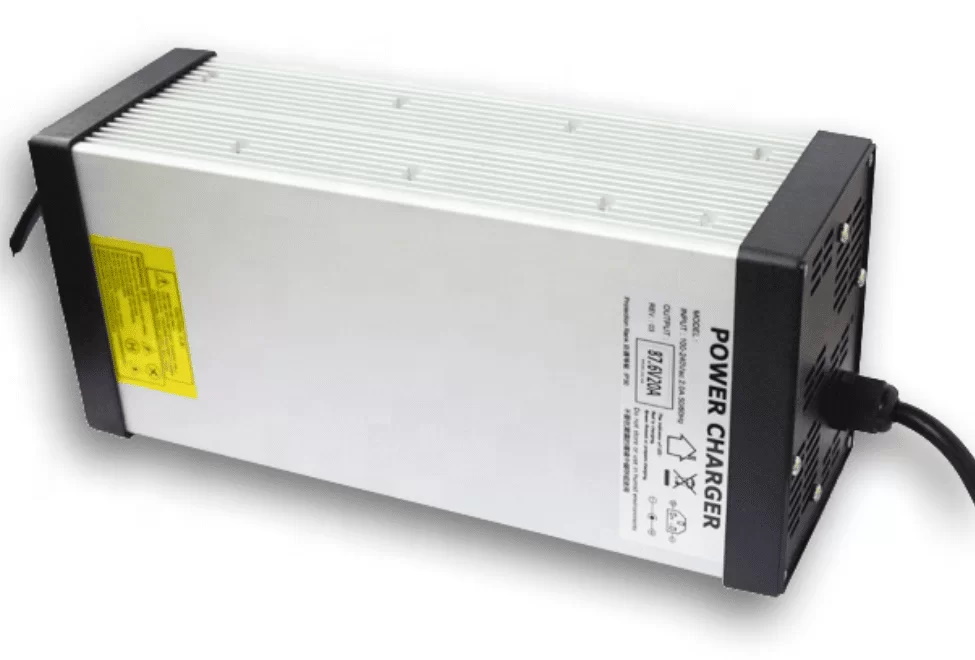

72V 12A Battery Charger for Electric Scooters, E-Bikes & E-Motorcycles with LED Indicator

This 72V 12A battery charger is a dedicated charging unit built for 72V nominal battery packs. It fits electric scooters, electric bicycles and electric motorcycles that run on 72V systems. The unit delivers up to 12A of output current, which works out to roughly 864 W of charging power.

It is not a power supply and not a generic adapter. Instead, it runs a battery-specific charging algorithm with constant current and constant voltage stages. Because of that staged process, charging finishes in a controlled way rather than simply cutting off. A two-colour LED indicator reports the status throughout the cycle.

Your charging connector type is chosen by you. Simply state the connector you need in your order comments, and the charger arrives matched to your battery socket. A built-in cooling fan handles the heat that 12A charging produces.

Key Features and Benefits

• Built for 72V systems – designed specifically for battery packs with 72V nominal voltage.
• 12A output current – noticeably faster charging, provided your battery BMS permits that current.
• Approximately 864 W output power – calculated as 72V × 12A, placing it among the more powerful units in its class.
• Two-colour LED indicator – red shows charging in progress, green shows a completed charge.
• Active cooling fan – keeps operation more stable during sustained high-current charging.
• Selectable charging connector – specify GX16, XLR, DC 5.5×2.1 or Anderson in your order comments.
• Universal fitment, no brand lock-in – works with a wide range of 72V packs when connector and cell chemistry match.
• Proper charging algorithm – constant current followed by constant voltage, not a crude fixed-voltage feed.

Who Is This Charger For?

This unit suits owners of electric scooters with 72V batteries, riders of 72V electric bicycles, and owners of electric motorcycle (e-moto) battery packs. In short, it belongs anywhere the system runs at 72V nominal voltage. Lower-voltage packs are not its target.

Worth knowing: 72V sits in the high-power class. Standard 250 W EU-regulated electric bikes typically use 36V or 48V systems instead. As a result, 72V packs turn up most often in higher-powered scooters and light electric motorcycles.

The charger works well for home and workshop use. Furthermore, it earns its place with battery builders and repair shops that need quicker turnaround on 72V packs. Before ordering, confirm that your cell chemistry and BMS both accept a 12A charge rate.

Technical Specifications

Why Choose This 72V 12A Charger?

The headline difference is the 12A current. Many 72V chargers on the market supply only 2A to 5A. Consequently, this model transfers considerably more energy into the pack over the same hour of charging.

The second difference is active cooling. At roughly 864 W of throughput, a lot of heat is generated. The fan is therefore not an optional extra here — it is a necessary part of stable operation. Expect the unit to be audible while charging.

Third comes the selectable charging connector. Connectors in 72V equipment are not standardised: GX16, XLR, DC 5.5×2.1 and Anderson types are all in circulation. You name your type in the order comments and receive the matching version.

Frequently Asked Questions

Which vehicles does this 72V 12A charger fit?

• Electric scooters, electric bicycles and e-motorcycles running 72V battery packs.
• The connector must match your battery’s charging socket.
• Your BMS must permit a 12A charging current.

What do the LED indicator colours mean?

• Red — charging is in progress.
• Green — the battery is charged, or the charger is not yet connected to a battery.
• This is a two-colour LED, not a display screen.

Does this charger have cooling?

• Yes, a cooling fan provides active cooling.
• It supports more stable operation at the full 12A output.
• The fan is audible during charging.

Will it really charge my 72V e-bike battery faster?

• It supplies up to 12A, well above the 2A–5A of many 72V chargers.
• Real charging speed is limited by the battery BMS.
• If your BMS caps current lower, that cap becomes the limiting factor.

How do I choose the charging connector?

• State your connector type in the order comments.
• Common options include GX16, XLR, DC 5.5×2.1 and Anderson.
• Check the socket on your battery before ordering.

Can I use it as a power supply or adapter?

• No. This is a battery charger with a dedicated charging algorithm.
• It charges in constant current and constant voltage stages.
• A power supply holds a fixed output instead and does not terminate a charge.

Will it work with a 48V or 60V battery?

• No. The unit is built for 72V nominal packs only.
• Standard 250 W EU e-bikes generally use 36V or 48V systems.
• Match the charger to your system voltage before purchase.

Is it suitable for workshop use?

• Yes, it suits both home and workshop environments.
• Battery builders and service shops benefit from faster 72V pack charging.
• Confirm cell chemistry and BMS compatibility with 12A charging first.

Choosing a charger comes down to three things: system voltage, current, and connector. This unit covers 72V nominal packs at up to 12A, cools itself actively, and reports status through a red and green LED. Specify your connector in the order comments, check that your BMS accepts 12A, and your 72V scooter, e-bike or e-motorcycle pack is ready to charge.
