Unlock smoother, stronger power on your Sur-Ron

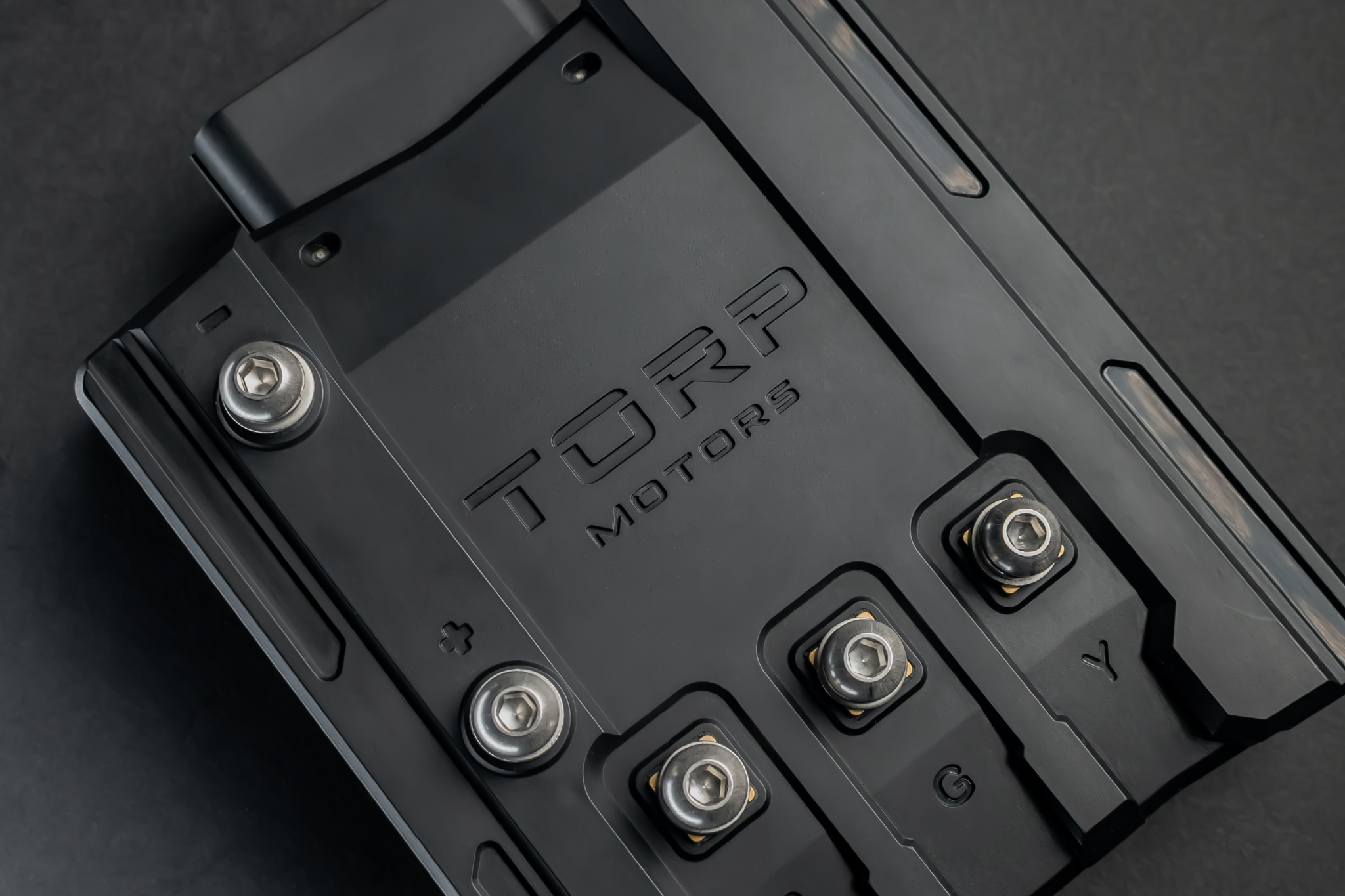

The Torp TC1000 2.X is a high-power FOC (Field Oriented Control) motor controller (inverter) built for the Sur-Ron Light Bee and compatible TM25, TM40, TM40 Pro motors. It’s designed as a serious drivetrain electronics upgrade—delivering refined throttle feel, efficient power delivery, and robust protection logic for demanding off-road and high-performance builds.
Built for 72V (22S) Sur-Ron builds
This controller supports 60–80 V nominal (22S) battery systems with up to 92.4 V at full charge. Whether you’re chasing stronger acceleration, better control at low speed, or more consistent performance under load, TC1000 2.X is engineered to handle it.
FOC performance with sensor & sensorless support
TC1000 2.X supports both sensored and sensorless motor operation. Sensored control works with HALL sensors and an encoder, helping deliver stable, predictable response across the RPM range—especially useful for technical trails and precise throttle modulation.
Bluetooth tuning + stock display compatibility
Dial in your setup via Bluetooth and keep a clean OEM look—TC1000 2.X supports communication with the original Sur-Ron stock display. It’s a practical upgrade for riders who want modern tuning convenience without sacrificing the factory dash experience.
High efficiency and built-in protection
With up to 99% efficiency, the controller is built to convert more battery energy into usable drive. Protection features include safeguards against overcurrent, overvoltage, undervoltage, and overheating—ideal for aggressive riding and higher-stress power setups.

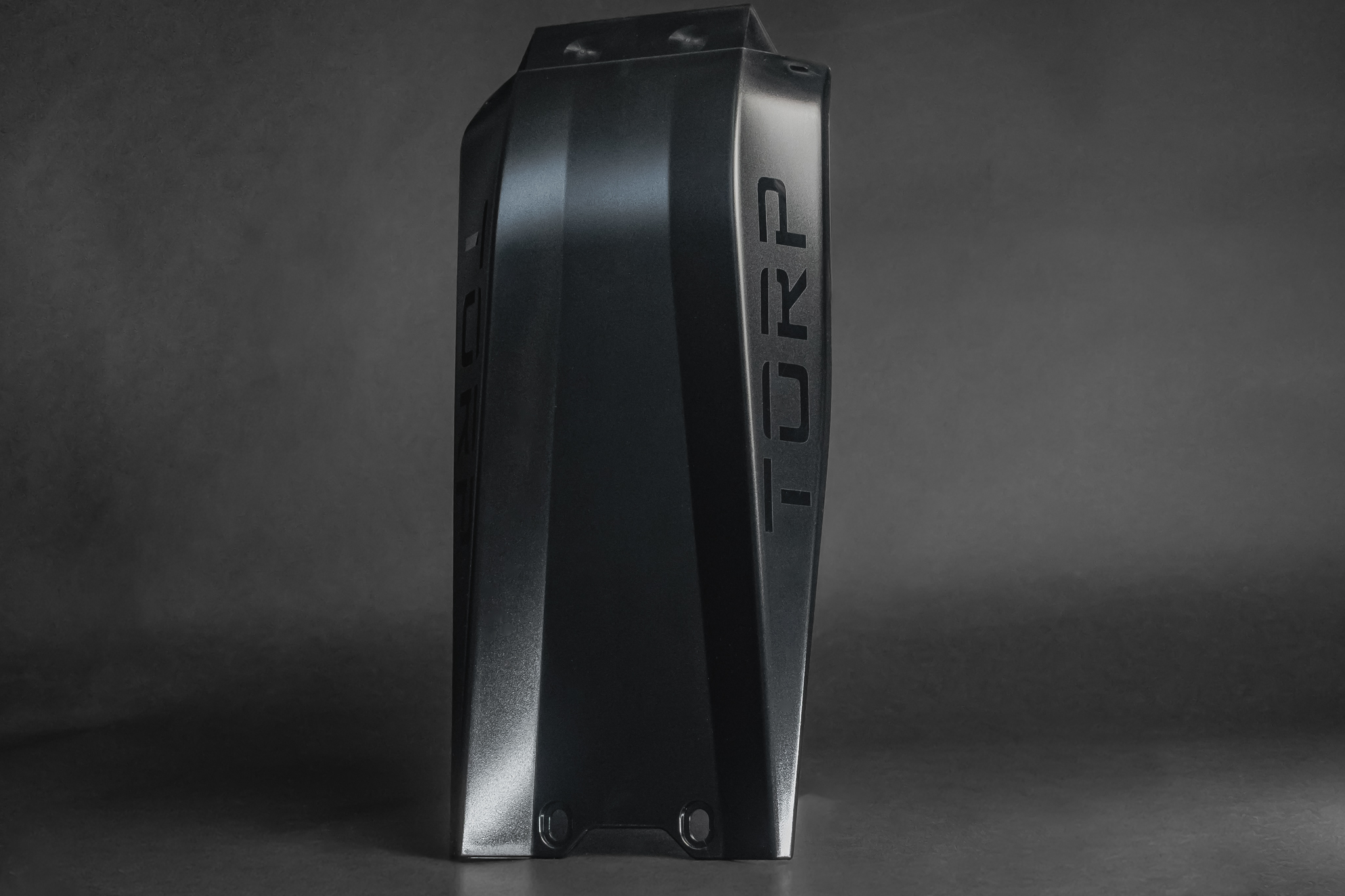

Waterproof controller body (IP67) — important note about connectors
The controller itself is rated IP67 for water resistance. However, the connectors and wiring harness are not waterproof. For wet climates, stream crossings, or pressure-wash scenarios, proper sealing/placement is recommended.
Key benefits
- FOC control tuned for Sur-Ron Light Bee and TM-series motors
- Wide voltage support: 60–80 V nominal (22S), up to 92.4 V fully charged
- Bluetooth connectivity for convenient setup and adjustments
- Up to 99% efficiency for strong, consistent performance
- Multiple protection systems for safer high-power operation
- Stock Sur-Ron display communication supported
- IP67-rated controller housing (controller body only)
Technical specifications
| Model | Torp TC1000 2.X |
| Control type | FOC (Field Oriented Control) |
| Compatible vehicles/motors | Sur-Ron Light Bee; TM25; TM40; TM40 Pro |
| Battery voltage (nominal) | 60–80 V (22S) |
| Max battery voltage (fully charged) | 92.4 V |
| Max rated power | Up to 50 kW* |
| Max battery current | 700 A |
| Max phase current | 1000 A* |
| Connectivity | Bluetooth |
| Efficiency | Up to 99% |
| Protections | Overcurrent, overvoltage, undervoltage, overheating |
| Water resistance | IP67 (controller body; connectors/harness not waterproof) |
*Notes: Power and phase current capability depend on the motor and overall setup.

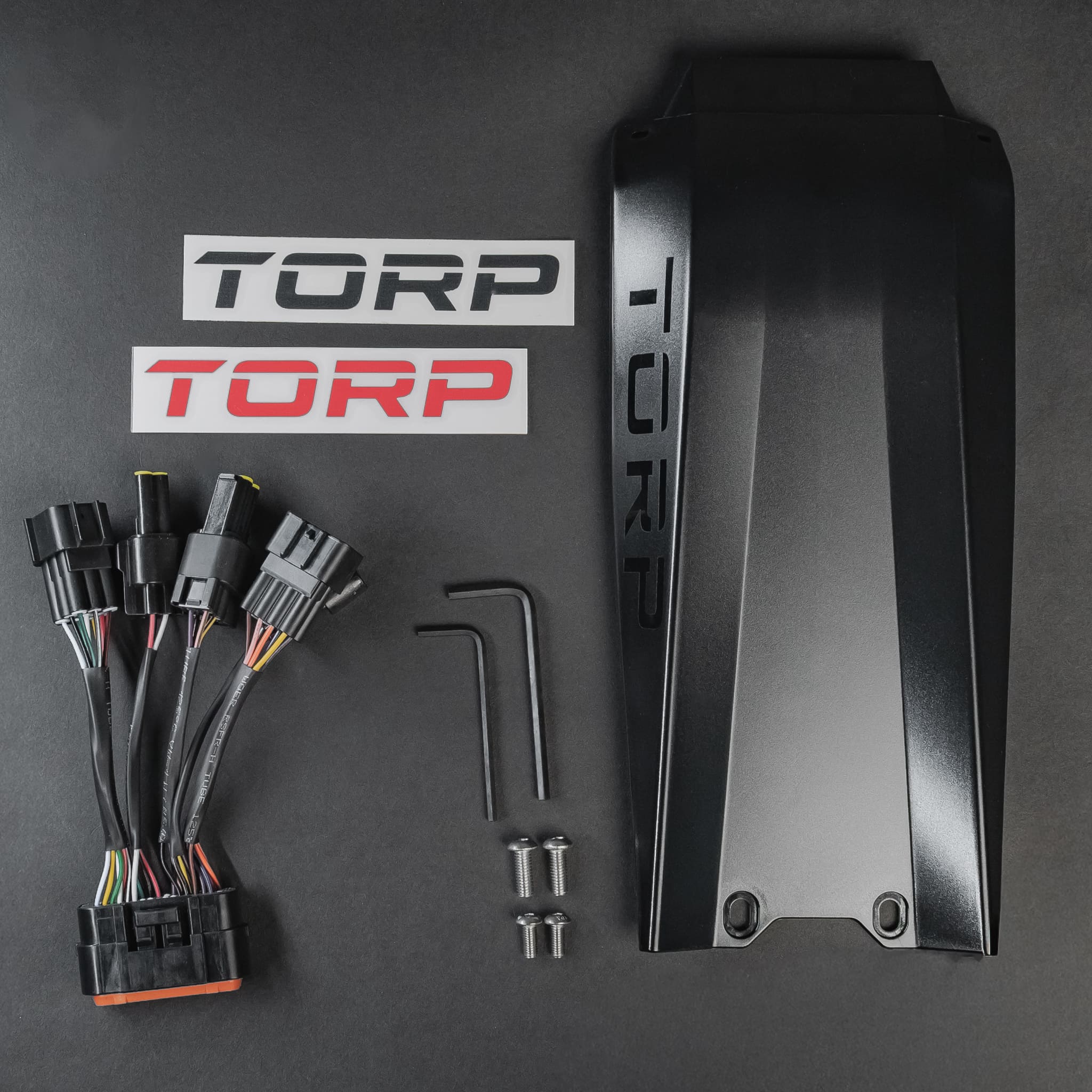

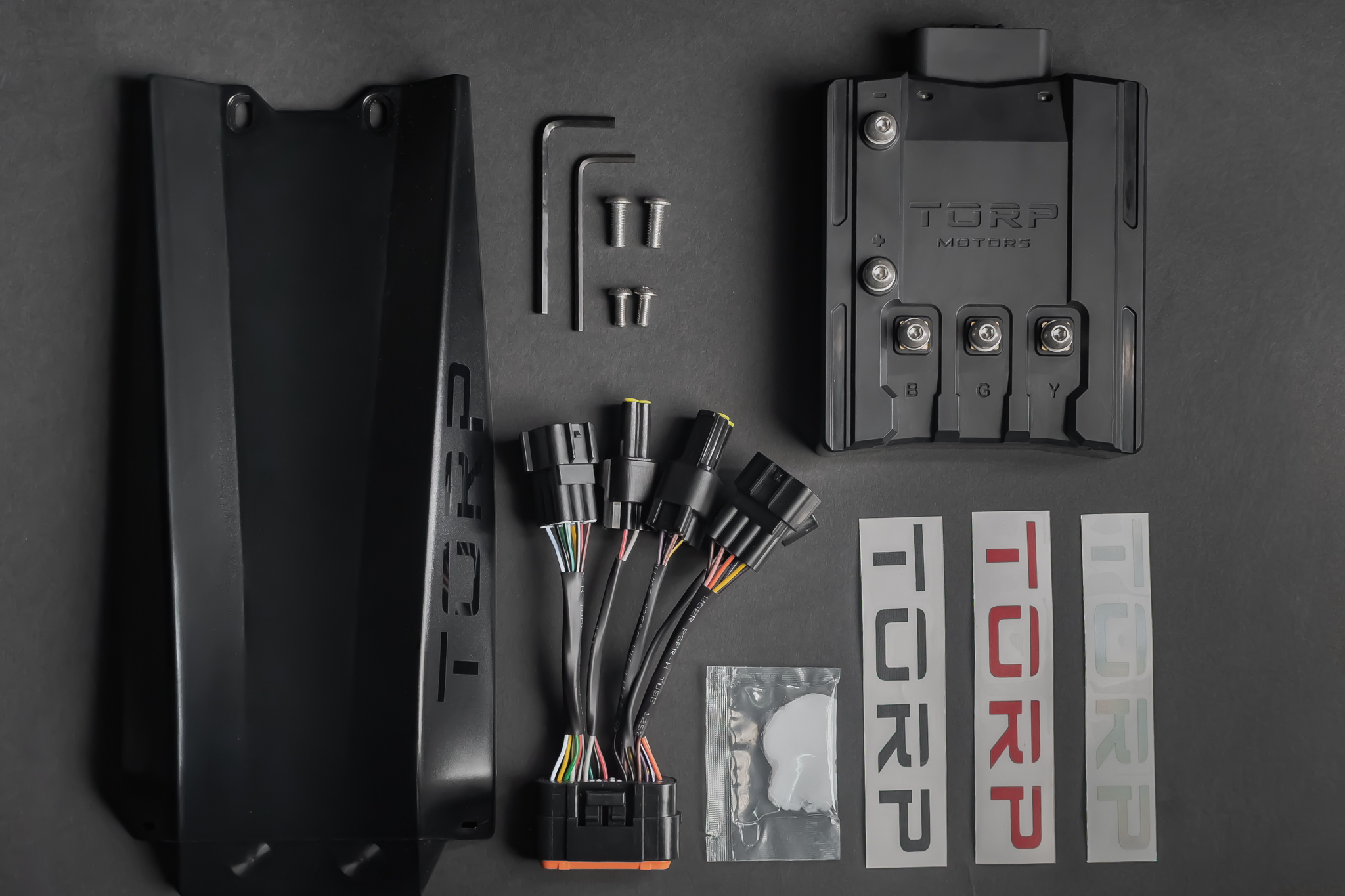

What’s included
- Torp TC1000 2.X motor controller

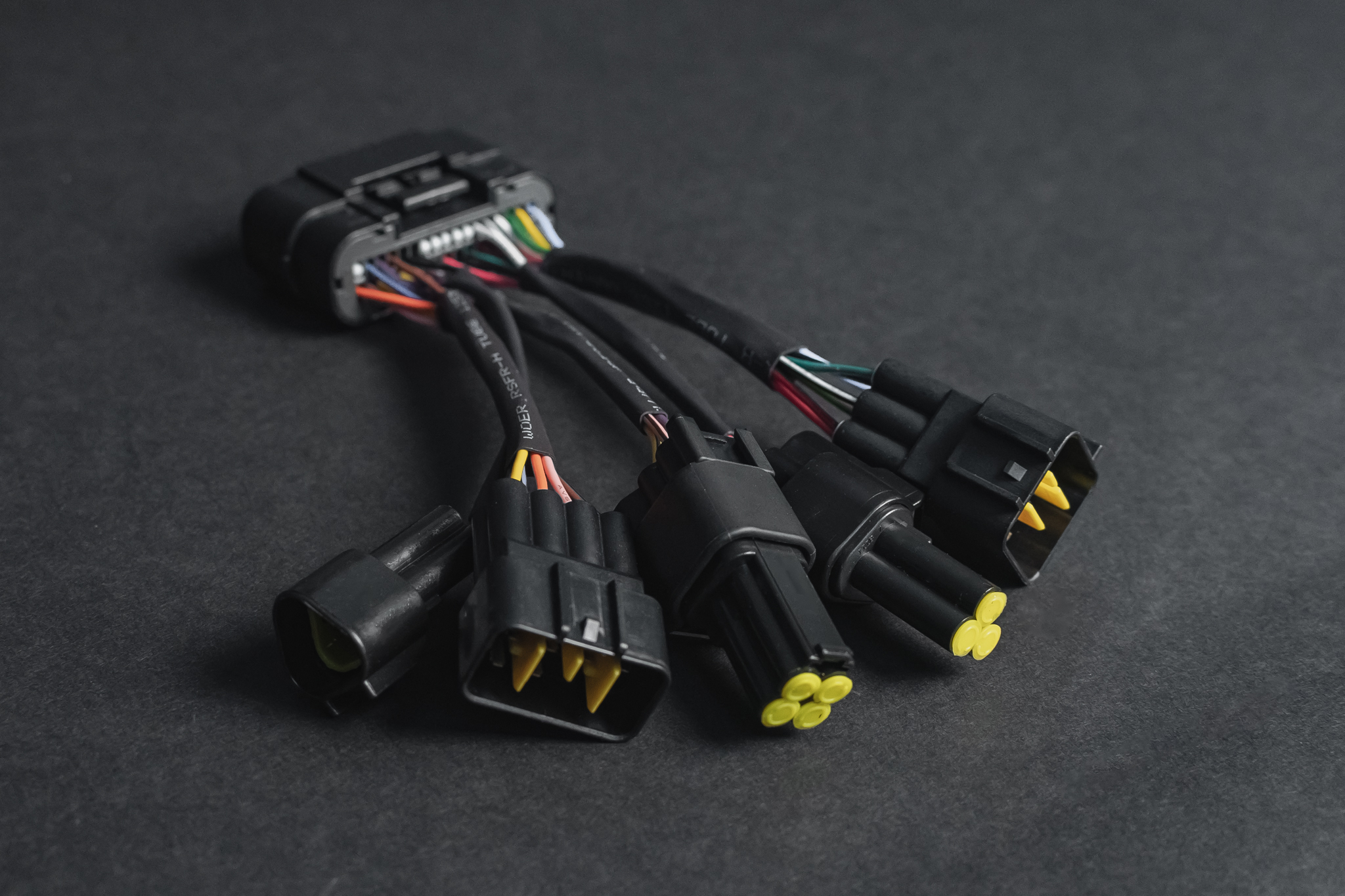

- Wiring harness
- Plastic cover
- Mounting bolts and required tools
- Silicone grease
- Quick instructions
