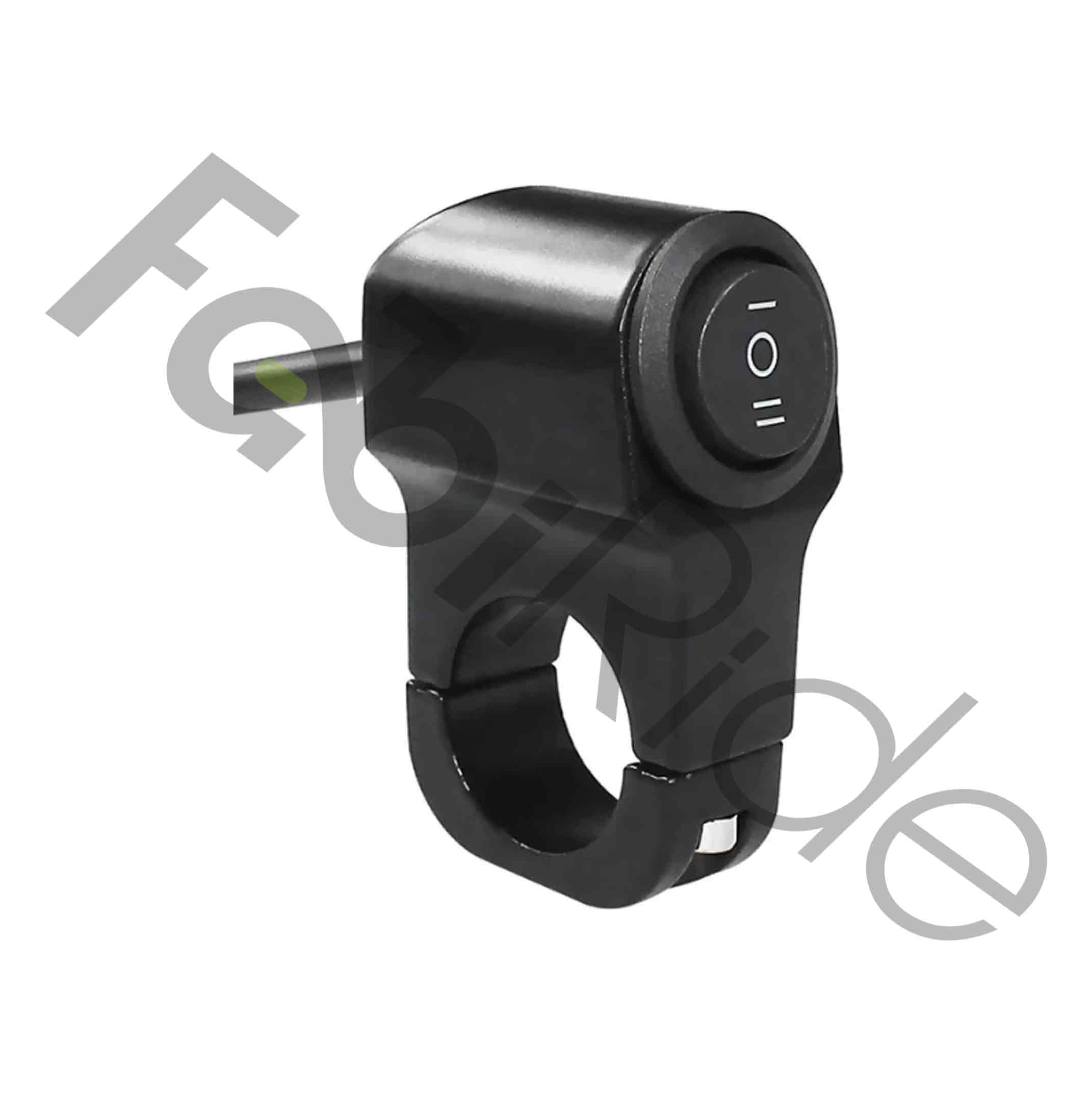

Universal 3-position switch for steering wheel mounting. Conveniently control switching on, lights/bulbs (e.g. OFF/LOW/HIGH), power limiting or assistance levels(ECO/NORMAL/SPORT).
Key benefits
- Three-position logic – change 3 modes (e.g. OFF / LOW / HIGH) with a single control.
- Extensive customisation – lights, limiter, assistance levels, eco/sport.
- High electrical performance up to 100 V and 8 A DC.
Specifications
- Type: 3-position switch (fixed positions)
- Mounting: on the steering wheel (bracket included)
- Max. Voltage: 100 V DC
- Max. Current: 8 A
- Wiring: lead-out wires (connection according to your diagram)
Compatibility
- Electric bikes, scooters, e-bikes, moto (DC circuits up to 100 V / 8 A).
- Controls, lights, limiters, assistant levels – if your system has the appropriate inputs.
Installation tips
- Observe the polarity and the manufacturer’s diagram (for the controller/lamps).
- Select the appropriate cross-section for the wires (especially for ~8 A loads) and protect them with a fuse.
- Route the wires in such a way that they do not fray or bend when you turn the steering wheel.
- Check the function of each position before actually driving.
- If you are controlling high-current loads (e.g. large bulbs), consider a relay, and use a switch to control only the coil of the relay.
FAQ
Is it suitable for 48 V / 72-80 V systems?
Yes, if the current ≤ 8 A. For high loads, relays are recommended.
Is it suitable for changing assistant levels?
Yes, if the controller has dedicated inputs. Connect according to the manufacturer’s diagram.
