SpeedBox 1.0 – chip for Impulse 2.0 engine. When activated, the speed limit of the electric assist doubled from 25 km/h to ~50 km/h.
Note: With an active chip, the speedometer reading is divided by 2 (e.g. if you are travelling at 40 km/h, the display will show ~20 km/h). The display and the trip data will be calculated at the reduced speed.
How it works
- Activation: insert the green wire into the SpeedBox 1.0 connector – the electric assist will work up to ~50 km/h.
- Switching off: insert the red wire into the same connector – the factory limit of 25 km/h is restored.
- Display: when the chip is activated, the speed on the display is halved; this is a normal feature of this model.
Key benefits
- Simple plug-in control without apps or complicated settings.
- Quickly switch between 50 km/h and 25 km/h modes.
- No complex modifications are required – integrates into existing wiring harness.
Compatibility
- Engine: Impulse 2.0 (electric bikes with this drive).
- Controls/displays: works with the factory system (displaying speed – as described above).

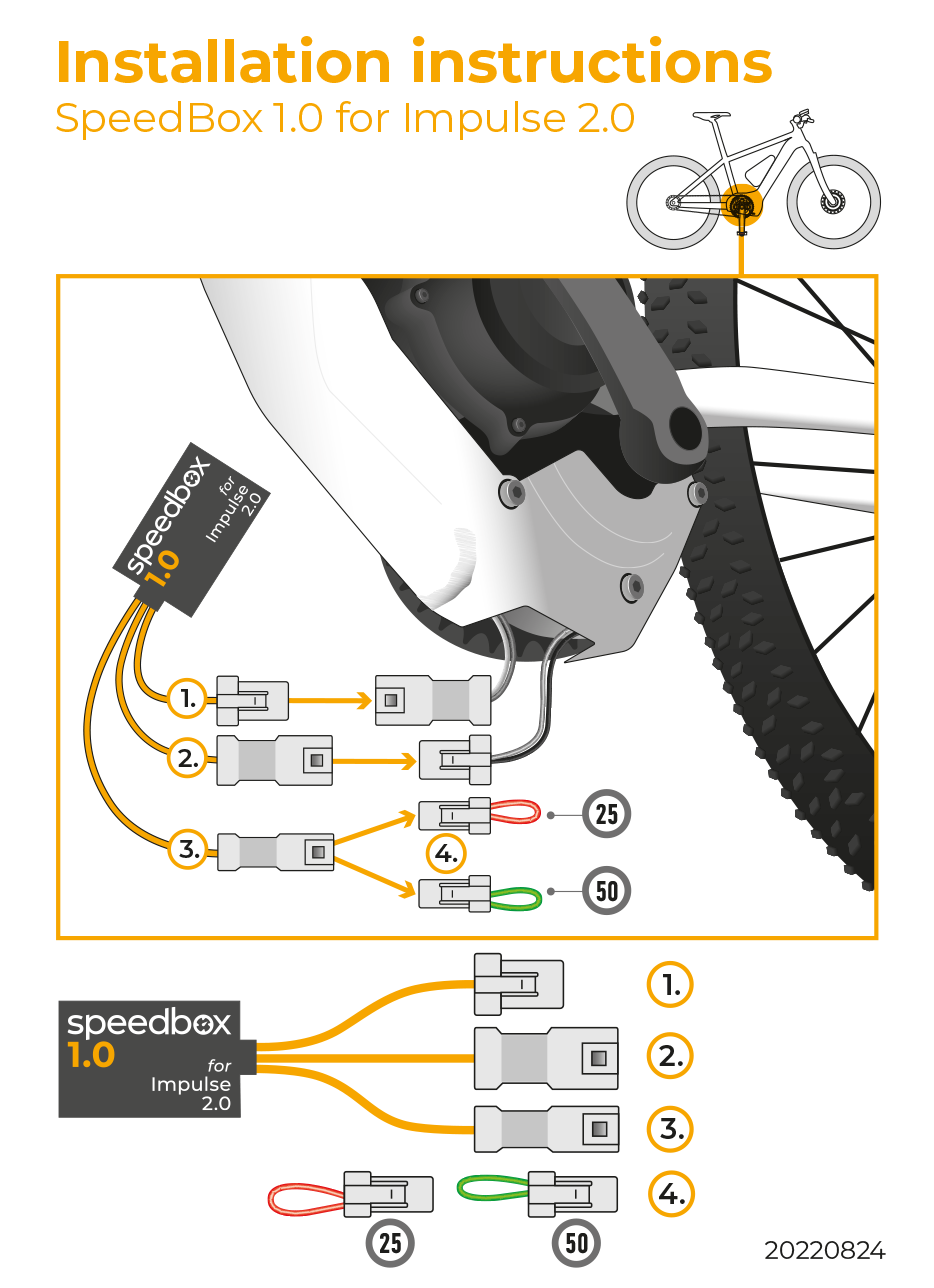

Installation
- Disconnect the bike from the power supply.
- Connect the SpeedBox 1.0 to the default Impulse 2.0 socket.
- Use the green/red wire to activate/deactivate as required.
- Follow the ESD and manufacturer’s safety recommendations when carrying out work.
Legal and safety notes
- Removing the speed limiter is banned on public roads in many countries. Use on off-road/private tracks in accordance with local regulations.
- Such tuning may void the manufacturer’s warranty.
- Higher speeds require the right brakes, tyres and skills.
Specifications
- Model: SpeedBox 1.0 (Impulse 2.0)
- Assist limit: up to ~50 km/h ( activated) / 25 km/h ( deactivated)
- Display: ~½ theactual speed when the chip is activated
- Control: green (ON) / red (OFF) lead to the supplied connector
FAQ
Can I see the exact speed above 25 km/h?
With version 1.0, no; the display will show ~½ the actual speed. If you need accurate readings, choose models with real data indication or an app (if available for your system).
Is the switching instantaneous?
Yes – just insert the appropriate wire (green/red) into the supplied connector.
Will it work with other versions of Impulse?
This model is for Impulse 2.0. For other versions, please contact us – we will check compatibility.
Assembly
When connecting the SpeedBox to your e-bike, you will find colour-coded connectors to make installation very easy. We’ve prepared detailed instructions and videos to make installation easier for you.
If you plan to install SpeedBox on a brand new bike, make sure you have ridden it at least 10 km before the chip is activated.
Full installation details here.
Warning
Please note that the use of this type of modified electric bicycle on public roads may be against the law in some countries. The manufacturer and the seller accept no liability for damage caused by the use of SpeedBox products. “Use of SpeedBox may void your ebike warranty.
We do not recommend updating the e-bike software
If you are updating your e-bike’s firmware, first remove the SpeedBox from the e-bike, update the firmware and reinstall the SpeedBox.
